8200mm 45 Kw Cnc Hydraulic Press Brake Machine Automatic Carbon Steel

Name

8200mm 45 Kw Cnc Hydraulic Press Brake Machine Automatic Carbon Steel

Brand Name: CMC
Model Number: WE67K-500/8200
MOQ: 1
Price: negotiation
Payment Terms: T/T, L/C
Supply Ability: 1 set 90 per days
Detail Information
Product Description
Detail Information
Place of Origin:
WUXI-China
Power:
Hydraulic,CNC
Machine Type:
Press Brake,Beading Machine
Condition:
New
Material / Metal Processed:
Stainless Steel,Carbon Steel,Aluminum
Automation:
Automatic
Packaging Details:
nude
Supply Ability:
1 set 90 per days
Highlight:

carbon steel cnc hydraulic press machine

,

Automatic cnc hydraulic press brake machine

,

Carbon Steel cnc hydraulic press

Product Description
TECHNICAL FEATURES
1 Type Hydraulic CNC electro-hydraulic synchro
2 Working force 500 T
3 Length of table 8200 mm
4 Distance between frames 6000 mm
5 Throat depth 1000 mm
6 Open height 1050 mm
7 Stroke 320mm
8 Speed

Fast down speed: 70mm/s

Working speed: 7mm/s

Return speed: 60mm/s
9 Main motor 45 kw
10 CNC system

TYPE: DELEM DA53T

Delem Co., Netherlands

2 Axis(Y1,Y2)+ 1 working table compensation axis
11 Tool With 1 punching and 1 bottom die
12 Main Electric Elements in cabinet Schneider
13 Seal in the cylinders NOK, made in Japan
14 Hydraulic components BOSCH-Rexroth - , Germany
15 Hydraulic pump SUNNY,USA
16 Linear Raster displayer sensor

FAGOR,SPAIN
17 Gross weight 62000kg(net 61000 kg)
18 Overall sizes(mm) LxWxH 8210x4000x6500
19 Packing:
The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it.

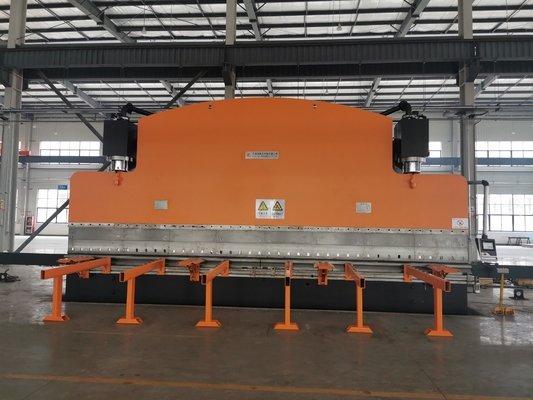

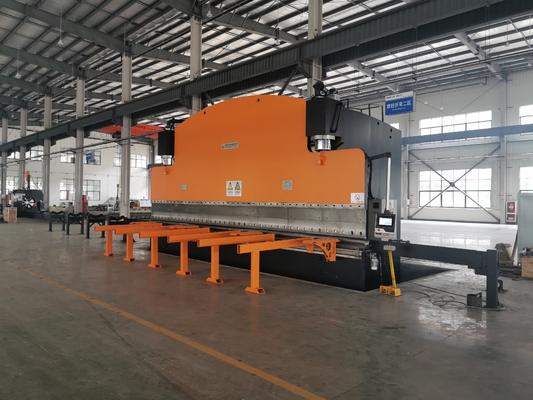

8200mm 45 Kw Cnc Hydraulic Press Brake Machine Automatic Carbon Steel 08200mm 45 Kw Cnc Hydraulic Press Brake Machine Automatic Carbon Steel 18200mm 45 Kw Cnc Hydraulic Press Brake Machine Automatic Carbon Steel 2
