HM1200 / 12000 Highmast And Monopole Seam Welding Machine

Product Details:
Place of Origin: WUXI,CHINA
Brand Name: CMC
Model Number: HM1200/12000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: According to the machine requirements
Packaging Details: According to the requirements
Delivery Time: According to the actual situation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: According to the actual situation

Detail Information

Warranty: 12 Months Voltage: 380V 50Hz Or Custom Made
Dimensions: Customized Color: Custom
High Light:

2m/min Monopole Seam Welding Machine


1200mm highmast seam welding machine

Product Description



HM1200 / 12000

Highmast and monopole seam welding machine



The machine includes the following items:

  1. Long working table for trolly and pole moving.

  2. Main gantry unit

  3. Driving system for pole trolly moving

  4. Hydraulic clamping (including the clamping wheels for pole)

  5. Submerged Arc Welding system, including welding wire feeding system.

  6. The flux recovering system

  7. Inner copper bar with water cooling system

  8. Rising type roller , 2 units

  9. hydraulic system

  10. Control system

    1 Workable Diameter 300-1200mm
    2 Workable length 12000 mm
    3 Pole thickness 4.5~12mm
    4 Clamping feet quantity 3 units
    5 Power of Motor for Pump 5.5 KW
    6 Moving Motor for trolly 7KW, AC servo
    7 Vertical travel stroke 1000mm
    8 Vertical travel working force 39ton(2 pieces cylinder x19.5 ton )
    9 side travel working force 32ton x 2 piece
    10 Welding Machine

    Submerged Arc Welding , 630A~1000A , base on customer side requirements.


    11 Welding wire diameter 2.5~4mm welding wire, according the pole thickness to do selection
    12 Working Speed 0.3~2m/min (Note: different thickness speed will be different
    13 Welding direction Welding start from base big end to top small end of shaft.
    14 Penetration capability 90 %
    15 Main Electric Elements Schneider (France brand)
    16 PLC Siemens
    17 Main motor Brand (for hydraulic pump) Siemens
    18 Servo motor Siemens
    19 Welding power Brand and model

    Submerged Arc Welding

    Kaiyuan (Panasonic Janpan factory in China)

    20 Weight 26 ton
    21 Overall sizes (mm) 31000x5500x5100 mm (LXWXH )






FOR AUTOMETIC SEAM WELDING POLE (for highmast,monopole etc).

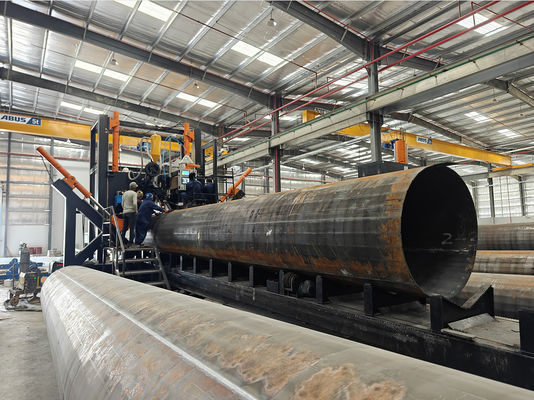

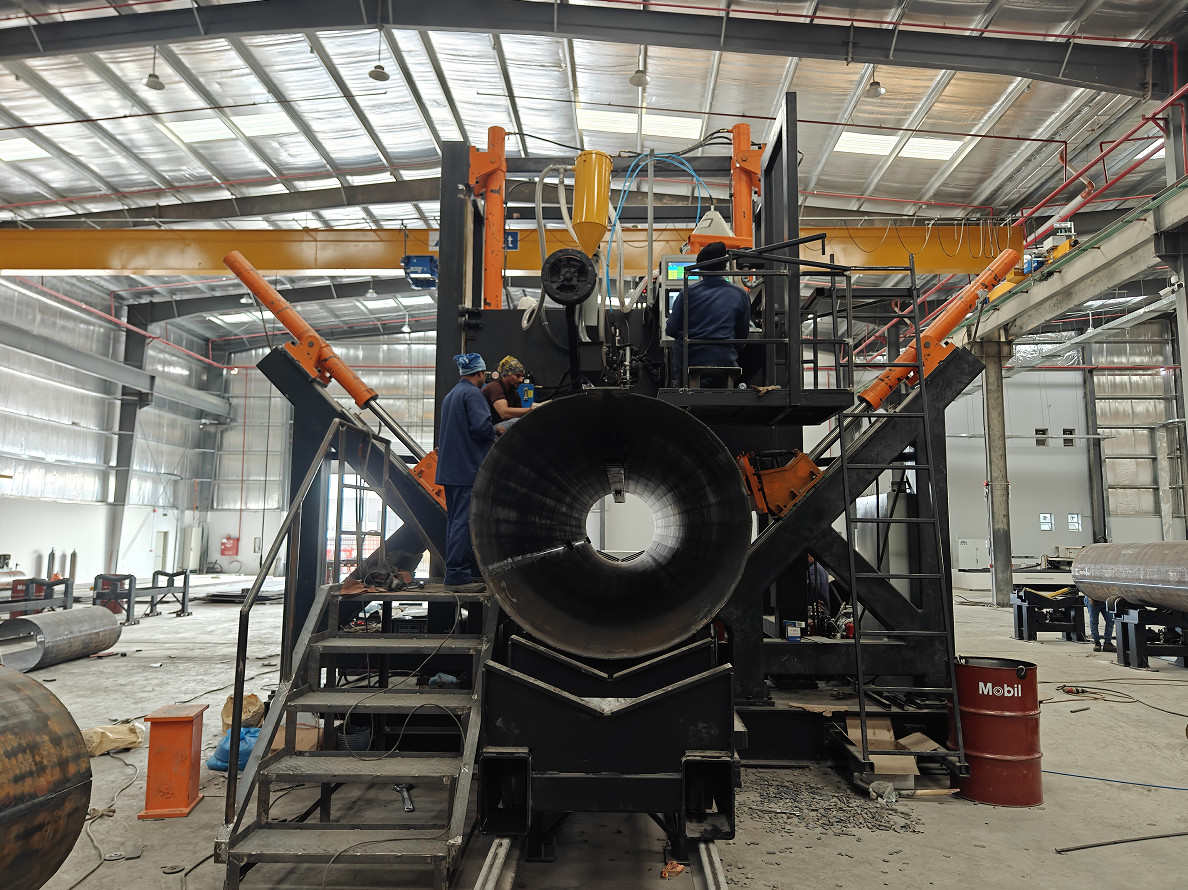

HIGHMAST POLE SHUT-WELDING MACHINE , it is suitable for one shell or two shell type polygonal and circle taper pole. it is automatic welding line, the gantry type structure is fixed and with welding system, fully pole length trolly with SERVO motor for speed adjustable moving , The hydraulic cylinder push the clamping wheel to close the pole and do welding at same time.



For two seam pole, when first seam welding finished, the bottom roller will rise and rotate the pole to another seam position to start second seam welding.
