Servo Type CNC Pole Shut Welding, Model CNCS360/12000

Servo Type CNC Pole Shut Welding, Model CNCS360/12000
Servo Type CNC Pole Shut Welding, Model CNCS360/12000
Servo Type CNC Pole Shut Welding, Model CNCS360/12000 Servo Type CNC Pole Shut Welding, Model CNCS360/12000

Large Image :  Servo Type CNC Pole Shut Welding, Model CNCS360/12000

Product Details:
Place of Origin: WUXI
Brand Name: CMC
Model Number: CNCS360/12000
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: as per negotiation, USD,EURO,RMB are acceptable
Packaging Details: disassembly, nude ,suitable for container shipping
Delivery Time: 50~60 days
Supply Ability: according to the machine quantity

Servo Type CNC Pole Shut Welding, Model CNCS360/12000

Description
Highlight:

Light Pole Welding Machine

,

Pole Shut Welding Machine

,

Welding Equipment For Light Pole Shut

Proprietary features:

1. It is suitable for the welding of street light pole, with round shape and no deformation, and no burning through during welding.

2. Full CNC, full servo, 3 sets of presser feet, which can be automatically adjusted with the change of the pole diameter taper. The side presser foot can be adjusted in the taper direction of the pole.

3. There is no hydraulic system to avoid oil leakage and greatly reduce maintenance.

4. The specially developed system can meet the slight inconsistency of the pole diameter in the production process of the pole. Ensure successful welding.

5. Because of the CNC control, it is not necessary for the operator to manually adjust the presser foot position at any time as the size and diameter of the pole change. Reduce the requirements for personnel and labor intensity.

6. From pole top to end, the length of the head and tail left un welded is very short, even without manual repair welding.

7. The number of presser feet is 3 sets V-table, which has the advantage of reducing the pressure of presser feet on the surface of pole, making the surface beautiful and reducing the impact of indentation,

The trolley can quickly return to the welding host, reducing the labor intensity of the operator.

8. Pulse MIG welding function, fast speed, good forming, using a mixture of argon and CO2 mixed gas, with very little welding spatter and almost no need for polishing .

9. Specially designed mobile worktable, Stable movement speed

10. The machine workbench is of V-structure, which is used to support the pole. It is very stable, easy to mount the pole, and reduces the labor intensity.

11. It is equipped with a rear guide plate for special guidance, which greatly reduces the adjustment frequency of the front welding gun.

12. CNC automatic adjustment. With the change of the polediameter, the CNC system automatically adjusts the pressure, automatically adjusts the position of the presser foot, automatically matches the feeding speed and position, and keeps the weld always in the closed state to ensure smooth welding.

13. Through the camera installed on the machine head, the weld seam is reflected on the screen on the console, making the tracking of the weld seam simple and easy and reducing the labor intensity of the operator.

14. There shall be no indentation or flattening after welding, provided that the previous process is free of deformation and distortion and the material is free of internal stress due to distortion.

15. When the machine is equipped with different pressing wheel dies, it can be suitable for octagonal pole and round pole of different sizes. Mold configuration, optional items can be provided according to customer requirements



Scope of use: suitable for longitudinal automatic welding of long light poles





CNC pole shut-welding machine

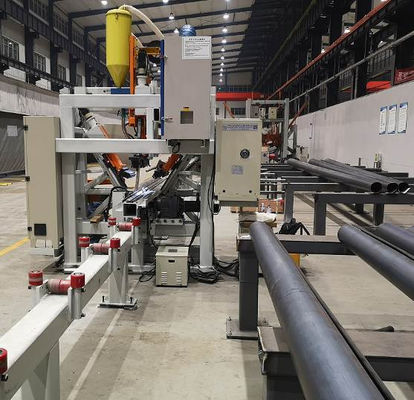

This machine is usually suitable for welding octagonal and circular conical light poles. This welding machine is an automatic welding line. The trolley is equipped with a servo motor, which can push the light pole on the V worktable. Three CNC presser feet can automatically adjust their positions according to the change of pole diameter. The machine completes welding while closing the poles.





The machine consists of the following parts:

  • Equipped with V-slot trolley, including drive gear and rack
  • Long worktable with guide wheels at both ends
  • Servo drive system of V-trolley, including servo motor, reducer, transmission mechanism and guide mechanism
  • Main machine head, including 3-direction clamping roller mechanism, driving structure, clamping wheel, applicable to conical pole , octagonal pole, guide mechanism
  • Pulse MIG welding system, including welding power supply, welding wire feeding, welding gun, welding cable, etc
  • Electrical control system, including CNC control system, servo drive, main control operation cabinet, weld monitoring system, etc
  • Clamping roller (tool), with machine

7.1: normal size octagonal street light pole clamping roller(Diameter:60~360mm)

7.2: Conical pole clamping roller(Diameter:60~360mm)

  • Option: Networked production data system, providing production data and also for remote maintenance
  • Option:Pole loading and unloading system
  • Option: spare parts





Technical Features
1 Light pole diameter range 60-360 mm
2 Max pole length 12000 mm
3 V type Trolly length 13000 mm
4 Light pole thickness range Thickness of pole (mm) Pole diameter range (mm)
    2.75 60~200
    4 60~360
    5 120~360
    6 200~360
5 Clamping roller position Both side and top of the light pole
6 Power of main servo Motor for trolly 2.3 KW
7 Servo motor for clamping unit 730W AC servo motor type
8 Welder 500A,Pulse MIG Welding system
9 Welding wire diameter 1.2 mm
10 Working Speed

1~2.5m/min

(Note: different thickness speed will be different

11 Main Electric Elements Schneider (France brand)
12 Welder Brand AOTAI, Chinese famous brand
13 Overall sizes (mm) 25000x2500x3200 mm (LxWxH)
14 Operator quantity 1 people
