Highmast And Monopole Seam Welding Machine

HM1200 Diameter 1200mm Shut Welding Machine For Longitudinal Seam Welding

HM1200 Diameter 1200mm Shut Welding Machine For Longitudinal Seam Welding

Brand Name:	CMC
Model Number:	1200-12000
MOQ:	1 set
Price:	according to the machine requirement
Payment Terms:	T/T
Supply Ability:	70~90 days

Detail Information

Product Description

Detail Information

Place of Origin:

Wuxi,china

Usage:

Seam Welding,welding Can,welding Steel Plate

Condition:

New

Welding Diameter:

Can Be Customized

Warranty:

1 Year

Voltage:

380V,415V

Weight:

According To Machine Size

Welding Mode:

Seam Welding

Packaging Details:

Suitable for container shipping

Supply Ability:

70~90 days

Highlight:

5.5KW light pole making machine

200mm light pole making machine

Product Description

Shut- Welding Machine

Model:HM1200/12000

The machine includes the following items:

Long working table for trolly and pole moving.
Main gantry unit
Driving system for pole trolly moving
Hydraulic clamping (including the clamping wheels for pole)
Submerged Arc Welding system, including welding wire feeding system.
The flux recovering system
Inner copper bar with water cooling system
Rising type roller , 2 units
hydraulic system
Control system

Application:

for autometic seam welding pole(for highmast,monopole etc.)

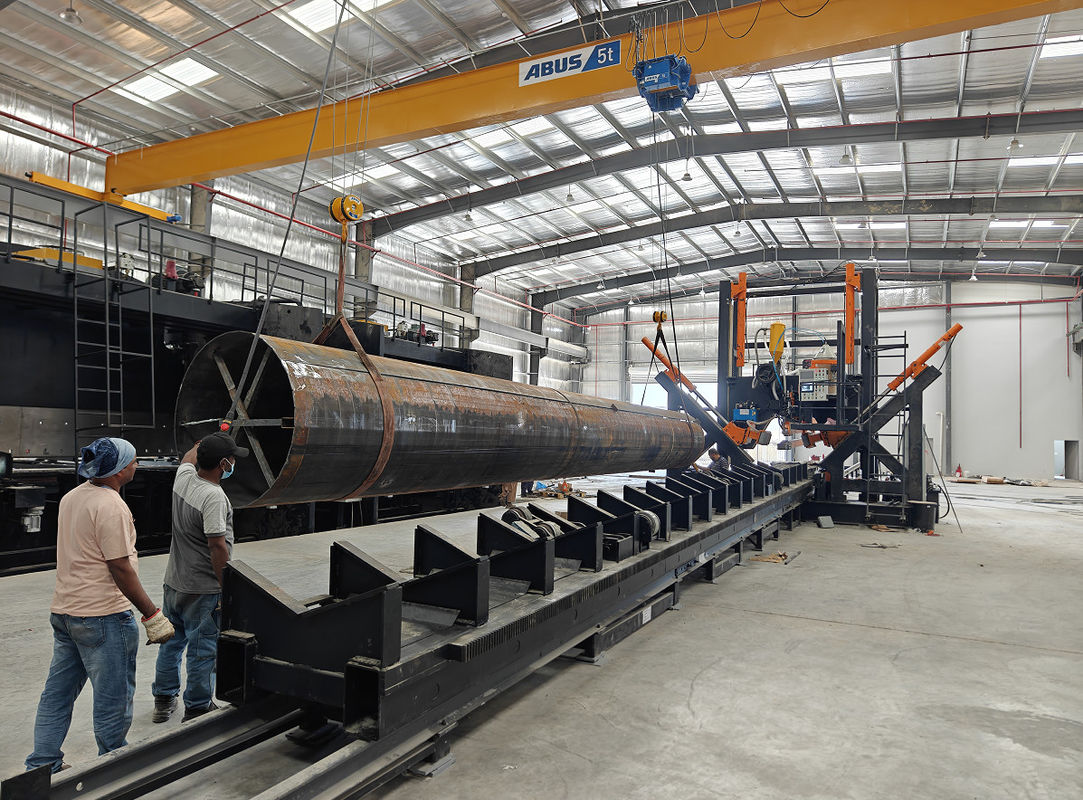

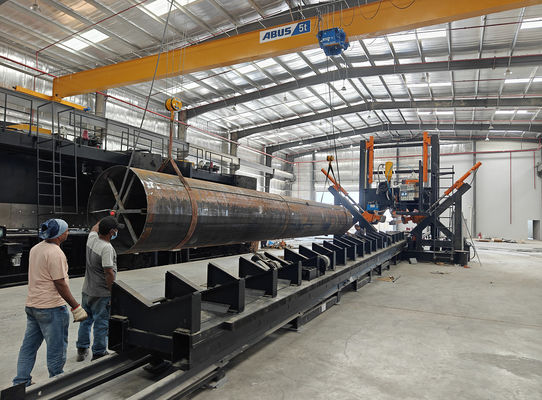

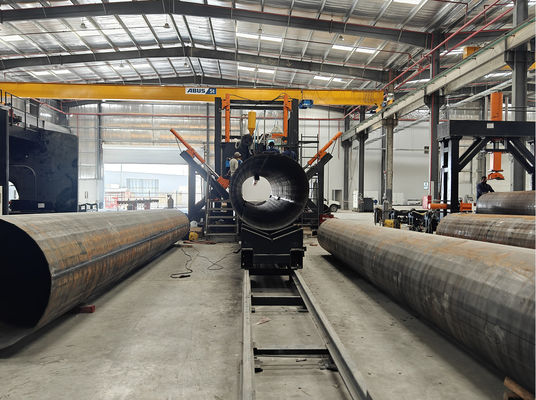

Highmast pole shut-welding machine , it is suitable for one shell or two shell type polygonal and circle taper pole. it is automatic welding line, the gantry type structure is fixed and with welding system, fully pole length trolly with SERVO motor for speed adjustable moving , The hydraulic cylinder push the clamping wheel to close the pole and do welding at same time.

For two seam pole, when first seam welding finished, the bottom roller will rise and rotate the pole to another seam position to start second seam welding.

Specifications

TECHNICAL FEATURES
1	Workable Diameter	350-1200mm
2	Workable length	12000 mm
3	Pole thickness	4.5~12mm
4	Clamping feet quantity	3 units.
5	Power of Motor for Pump	5.5 KW
6	Moving Motor for trolly	7KW, AC servo 7KW.
7	Vertical travel stroke	1000mm
8	Vertical travel working force	39ton(2 pieces cylinder x19.5 ton )
9	side travel working force	32ton x 2 piece
10	Welding Machine	Submerged Arc Welding , 630A~1000A , base on customer side requirements.
11	Welding wire diameter	2.5~4mm welding wire, according the pole thickness to do selection
12	Working Speed	0.3~2m/min (Note: different thickness speed will be different)
13	Welding direction	Welding start from base big end to top small end of shaft.
14	Penetration capability	90 %
15	Main Electric Elements	Schneider (France brand)
16	PLC	Siemens,
17	Main motor Brand (for hydraulic pump)	Siemens,
18	Servo motor	Siemens,
19	Welding power Brand and model	Submerged Arc Welding Kaiyuan (Panasonic Janpan factory in China)
20	Weight	26 ton
21	Overall sizes (mm)	31000x5500x5100 mm (LXWXH)

HM1200 Diameter 1200mm Shut Welding Machine For Longitudinal Seam Welding 0
