Diameter 200-1200 Shut Welding Machine For Longitudinal Seam Welding

Product Details:
Place of Origin: Wuxi,china
Brand Name: CMC
Model Number: 1200-12000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Payment Terms: T/T
Supply Ability: 70~90 days

Detail Information

Usage: Seam Welding,welding Can,welding Steel Plate Condition: New
Welding Diameter: Can Be Customized Warranty: 1 Year
Voltage: 380V,415V Weight: According To Machine Size
Welding Mode: Seam Welding
High Light:

5.5KW light pole making machine


200mm light pole making machine

Product Description

Shut- Welding Machine






The machine includes the following items:

  1. Long working table for trolly and pole moving.
  2. Main gantry unit
  3. Driving system for pole trolly moving
  4. Hydraulic clamping (including the clamping wheels for pole)
  5. Submerged Arc Welding system, including welding wire feeding system.
  6. The flux recovering system
  7. Inner copper bar with water cooling system
  8. Rising type roller , 2 units
  9. hydraulic system
  10. Control system





for autometic seam welding pole(for highmast,monopole etc.)

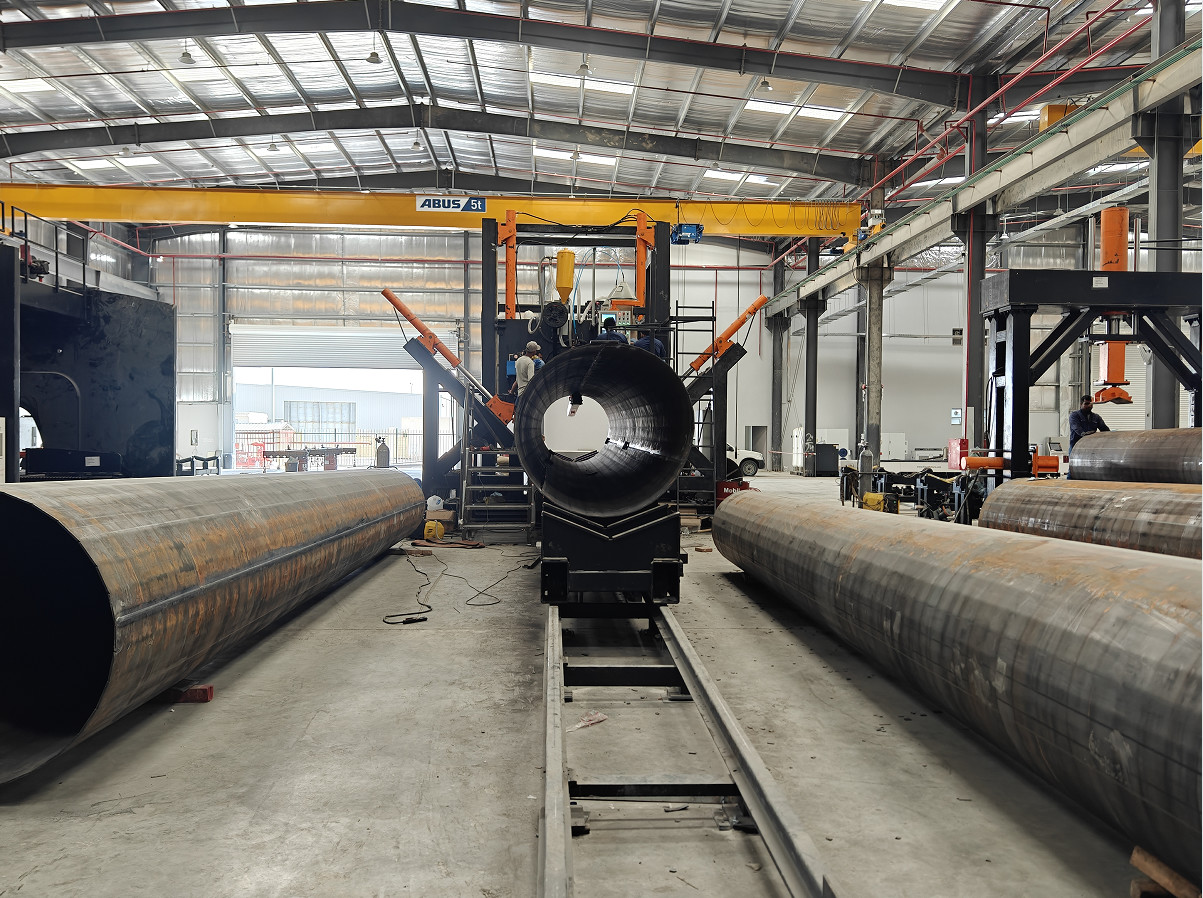

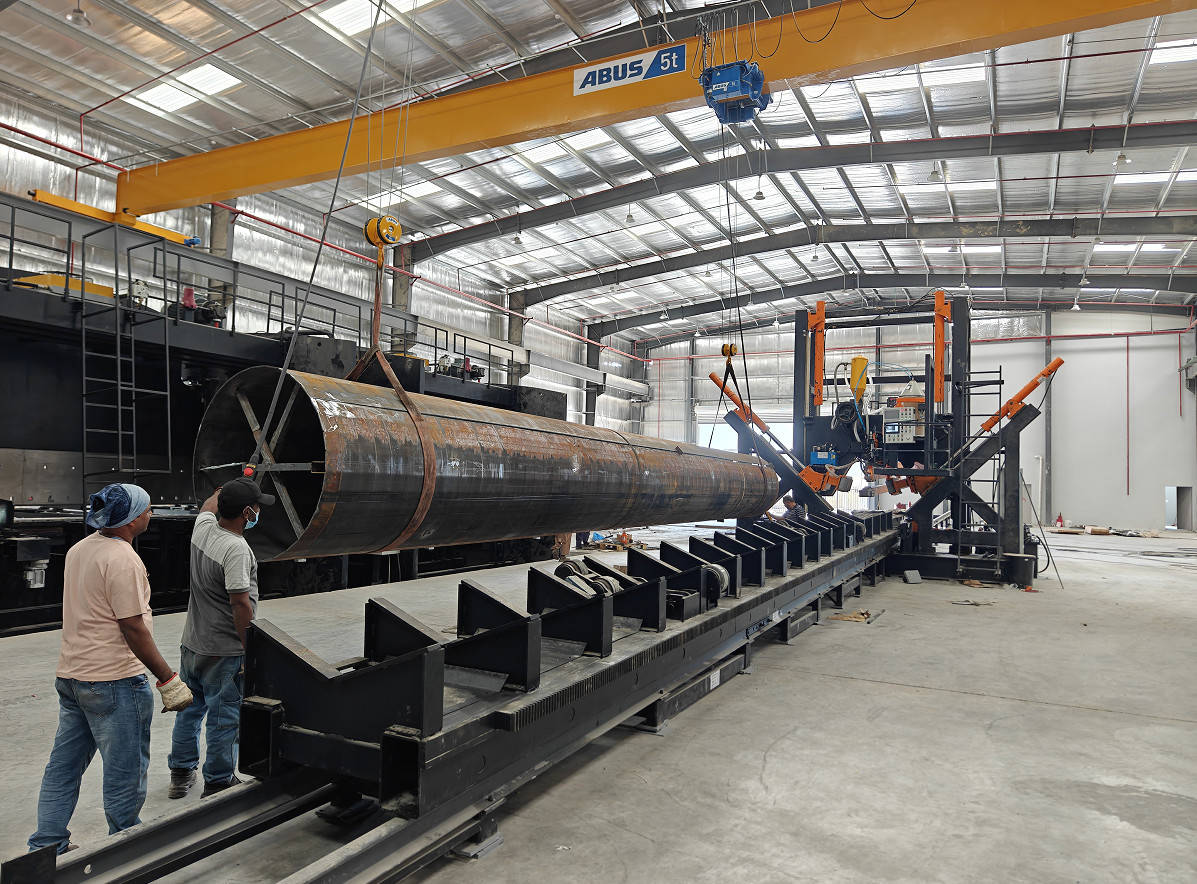

Highmast pole shut-welding machine , it is suitable for one shell or two shell type polygonal and circle taper pole. it is automatic welding line, the gantry type structure is fixed and with welding system, fully pole length trolly with SERVO motor for speed adjustable moving , The hydraulic cylinder push the clamping wheel to close the pole and do welding at same time.

For two seam pole, when first seam welding finished, the bottom roller will rise and rotate the pole to another seam position to start second seam welding.






Workable Diameter


Workable length

12000 mm

Pole thickness


Clamping feet quantity

3 units.

Power of Motor for Pump

5.5 KW

Moving Motor for trolly

7KW, AC servo


7 Vertical travel stroke 1000mm
8 Vertical travel working force 39ton(2 pieces cylinder x19.5 ton )
9 side travel working force 32ton x 2 piece
10 Welding Machine

Submerged Arc Welding , 630A~1000A , base on customer side requirements.


Welding wire diameter

2.5~4mm welding wire, according the pole thickness to do selection

12 Working Speed

0.3~2m/min (Note: different thickness speed will be different)

13 Welding direction  Welding start from base big end to top small end of shaft.
14 Penetration capability  90 %
15 Main Electric Elements  Schneider (France brand)
16 PLC Siemens,
17 Main motor Brand (for hydraulic pump) Siemens,
18 Servo motor  Siemens,
19 Welding power Brand and model

Submerged Arc Welding

Kaiyuan (Panasonic Janpan factory in China)

20 Weight  26 ton

Overall sizes (mm)

31000x5500x5100 mm (LXWXH)
