Pneumatic plate hydraulic guillotine shearing machine , sheet metal cutting machine

Product Details:
Place of Origin: wuxi -china
Brand Name: CMC
Model Number: QC12Y-12X3200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: FOB/CIF
Supply Ability: According requirement

Detail Information

High Light:

hydraulic guillotine shearing machine

,

sheet metal cutting machine

Product Description

Specifications

1). This machine belongs to second generation of hydraulic shear, with advanced integrated hydraulic system with an excellent reliability and easy for maintenance.
2). Welded steel plate construction, hydraulic drive and welded blades frame, with high strength and good rigidity.
3). Adopts three-point roller guides. Through the force to the front roller by the special spring, the cutting beam keeps in touch tightly with the two back rollers.
4). The shearing angle can be changed so the performance would be good to cut either thick or thin plate.
5). As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
6). The power storage device returns steadily and quickly.
7). The special worktable structure, designed from optimization technology makes the deformation(Sx), which is formed during shearing, to be able to compensate the curving of the upper beam under the shearing force. This assures the blade gap to remain constant laong the full length of the worktable thus enhancing the shearing precision and quality.

8)The machine can be with pneumatic back material holder



Technical Parameters:



TECHNICAL FEATURES

1

Type

Hydraulic Guillotines type

2

Cutting length

3200 mm

3

Cutting thickness

10 mm (mild steel at 450 Mpa)

4

Shear angle

0.5~2°adjustable

5

Number of stroke per minute

8

6

Stroke back gauge

20-800mm

7

Main motor

18.5kw

8

Main Electric Elements in cabinet

Schneider

9

Seal in the cylinders

NOK, Made in Japan

10

Gross weight

12000 kg

11

Overall size(mm) LxWxH

3915x1998x2240

12

Packing:

With plastic covers









Option

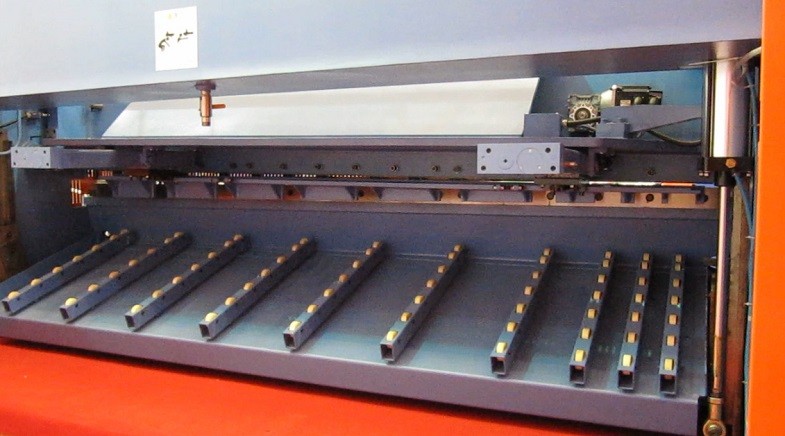

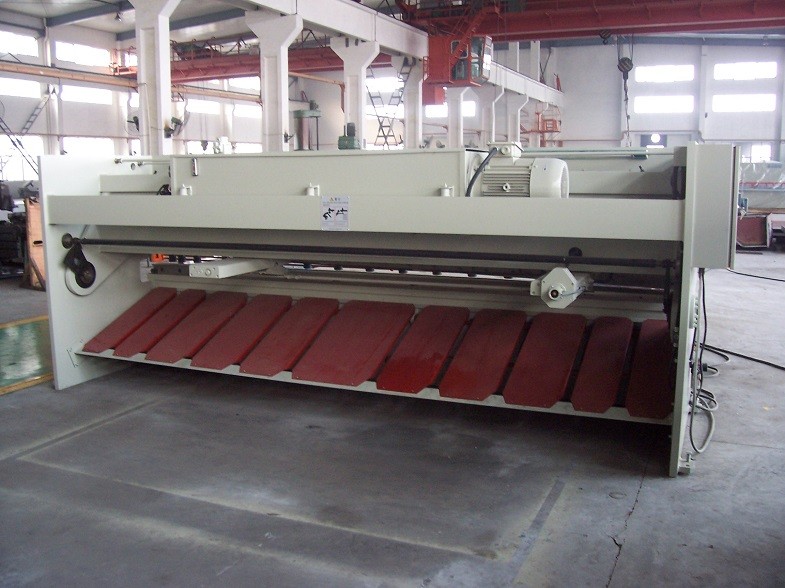

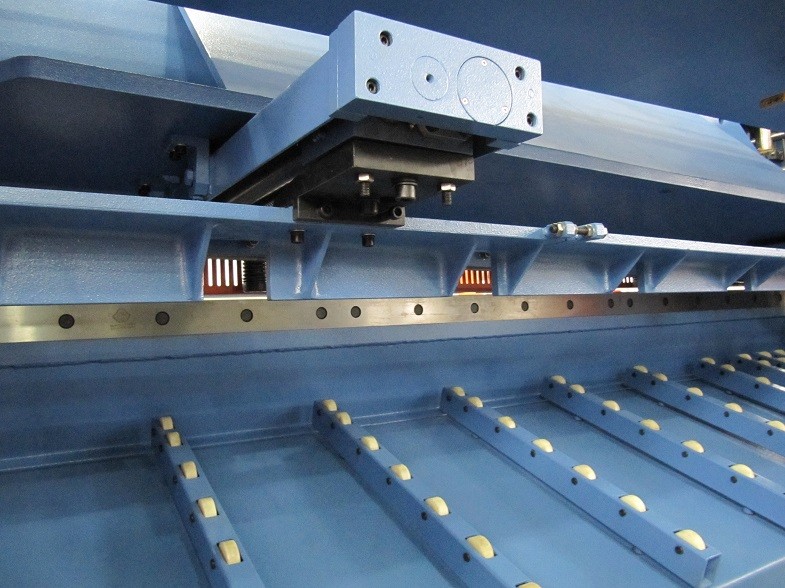

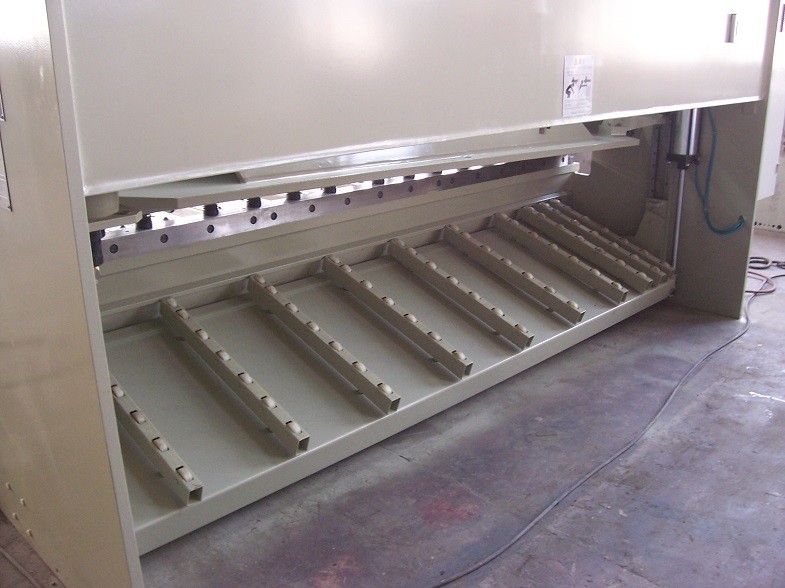

With Pneumatic sheet follower, as attached photos
