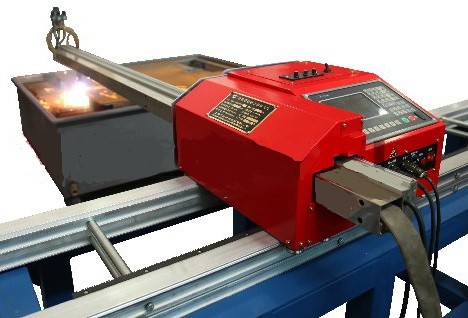

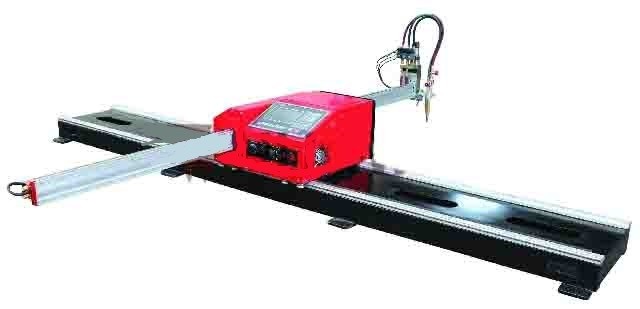

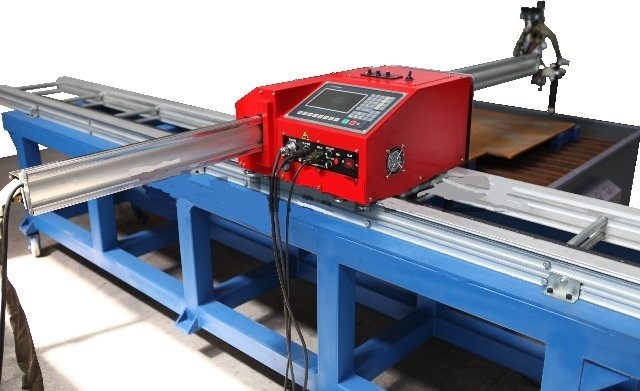

Automatic high definition CNC Plasma Cutting Machine / Equipment

Product Details:
Place of Origin: wuxi ,china
Brand Name: cmc
Certification: ISO
Model Number: CNC4-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negociate
Packaging Details: metal pallet and plastic cover
Delivery Time: 25-30days
Payment Terms: TT,LC,FOB,CIF
Supply Ability: Negociate

Detail Information

High Light:

portable cnc plasma cutting machine

,

steel plate cutting machine

Product Description

Quick Detail:



Name Other names Brand Name CMC
CNC4-1500 CNC Plasma Cutting Machine For Automatic Cutting

CNC flame cutting machine

CNC cutting

Mild steel cutting

Big thickness cutting

Thick metal sheet cutting

Cutting range

X axis: 1500mm

Y axis: 3000mm

Cutting thickness: 6-150mm

Advantage Support drawing and nesting in AUTOCAD environment Option It can be equipped with Plasma, two founctions





Specification:



Multi-language selection
Wider rail could cutting more stable
Smart design easy control

Host longitudinal rails imported precision dual axis linear guides, horizontal transmission by a precision aluminum extrusions and components, transmission stability, high accuracy Can cut any complex plane figures for oxyfuel flame cutting and plasma cutting machine, free to move, not accounting for fixed venue. Widely used in automotive, shipbuilding, petrochemical, boiler and pressure vessel, engineering machinery, light machinery and other industries, especially for single-piece contoured surface and mass production.





Specifications

Mode CNC4-1500
Input voltage, Power Frequency 220V, 50Hz
Rated power 180w
CNC system Adtech
LCD size 5.7 inch
Effective cutting range X axes:1500mm; Y axes: 3000mm
Flame cutting thickness 6-150mm
Cutting accuracy ±0.5
Cutting type Flame
Nesting soft InteGNPS (it is compatible with AUTO CAD)
Packing Way Wooden Packing
