LIGHT POLE SHUT-WELDING MACHINE, MODEL: 450/12000
(Submerged Arc Welding and Gas-shielded welding(CO2) Welding both founction)
APPLICATION: FOR AUTOMETIC WELDING LIGHT POLE
LIGHT POLE SHUT-WELDING MACHINE , it is suitable for one piece type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.
The machine includes the following items:
|2||Workable length||12000 mm|
|3||DOLLY LENGTH||1500 MM|
|4||Suitable light pole Thickness||Light pole diameter: 60~450mm||2.8~4.5mm|
|Light pole diameter: 250~450mm||2.8~6mm|
|Light pole diameter: 300~450mm||2.8~8mm|
|5||Clamping feet quantity||8, ( the advantage is that more clamping unit , it gives less pressure and less mark on the surface of pole.|
|6||Power of Motor for Pump||4+2.5 KW double pump|
|7||Power of Motor for pulling dolly||4 KW, AC speed changeable type.|
|8||Welding Machine||500A, (Submerged Arc Welding and Gas-shielded welding(CO2)|
|9||Welding wire diameter||1.2~1.6mm welding wire, according the pole thickness to do selection|
|10||Working Speed||1~3m/min stepless, adjustable (Note: different thickness speed will be different)|
|11||Working capacity||50 pieces poles / 8 hours|
|12||Gross weight||7000 kg|
|13||Overall sizes (mm)||27000x3000x4500 mm (LXWXH)|

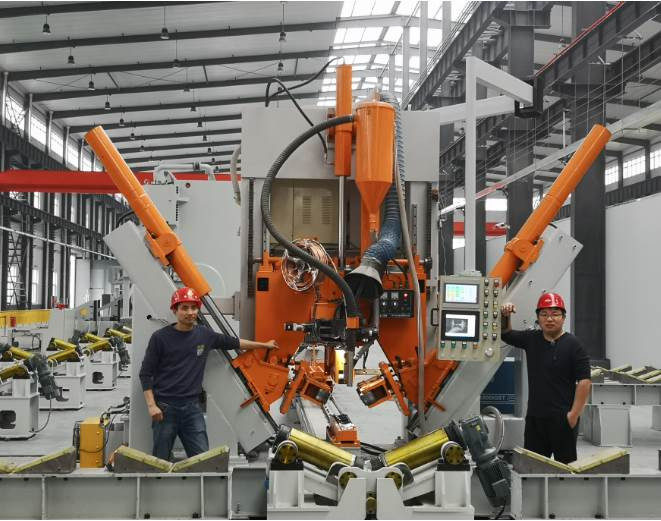

Both Side additional hydraulic cylinder advantage:
It is suitable for small diameter big thickness light pole, or steel plate with high tensile strength light pole.
It can give big force to close the opened pole and do seam welding at same time.
Also, for the very small thickness light pole, it can pull the clamping foot to opposite direction to avoid the clamp feet cause big mark and crush the pole surface.
|Option2||Dolly fast going back device||When finish the pole welding, after press the button, the dolly will return back to main welding head with fast speed. And stop automatically (note: manual type machine, the dolly must be pushed back by operator , it is hard work and needs more time)|
|Option3||Pneumatic clamping unit , advantage:||
With Pneumatic clamping unit for pole, it is easy for operator and much faster then manual type clamping.
(Note : Pushing type pole shut welding machine , without any clamping unit for pole, and have to connect the ground wire for every pole before welding. So, Compare pole pushing type welding machine , Our pulled type machine is more stable for welding speed and after welding, the pole has less welding curve. No need put ground wire for every pole before welding. So more easy)
14meter table + 7 meter’s back support also included
