Heavy Duty 2×650Ton 7M CNC Tandem Press Brake for Long Tapered & Octagonal Light Pole Production

1 set
MOQ
Negotiation
Price
Heavy Duty 2×650Ton 7M CNC Tandem Press Brake for Long Tapered & Octagonal Light Pole Production
Features Gallery Product Description Request A Quote
Features
Specifications
Single Unit Bending Force: 650 Ton, Total Tandem 1300 Ton
Single Worktable Effective Length: 7000mm, Total Linked Bending Length 14000mm
Control System Configuration: Imported Dual-Axis CNC Controller
Hydraulic Control Mode: Electro-hydraulic Proportional Synchronous System
Main Pump Motor Power Setup: 2×45kW Dual Pump Motor
Suitable Processing Workpiece: Street Light Pole, Communication Monopole, High Mast Pole
Supporting Forming Mold CategorySupporting Forming Mold CategorySupporting Forming Mold CategorySupp: 7 Times Forming Conical & Octagonal Pole Molds
Customizable Options: Machine Surface Paint Color
Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: CMC
Model Number: 2-WE67K-650/7000
Payment & Shipping Terms
Delivery Time: 90days
Payment Terms: T/T,L/C
Supply Ability: According to requirements
Product Description
Heavy Duty 2×650Ton 7M CNC Tandem Press Brake for Long Tapered & Octagonal Light Pole Production
Professional CNC tandem hydraulic press brake specifically designed for heavy-duty thick-wall street light poles, communication monopoles, and oversized highway high mast poles.
Quick Overview
Item Details
Product Name CNC Tandem Hydraulic Press Brake / Double Linkage Light Pole Bending Machine
Model 2-WE67K-650/7000
Core Application Form street light poles, communication monopoles & highway high mast poles
Origin Jiangsu, China
MOQ 1 Set
Standard Voltage 380V 50Hz, customizable
Target Customer Steel light pole factory, monopole & high mast production line
Main Core Configuration 2-Axis CNC System, Electro-hydraulic Synchronous Hydraulic System, Complete Electrical Control Cabinet
Product Introduction

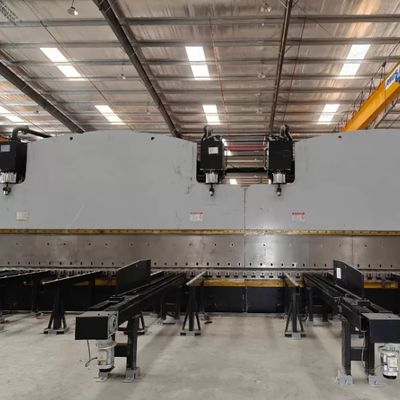

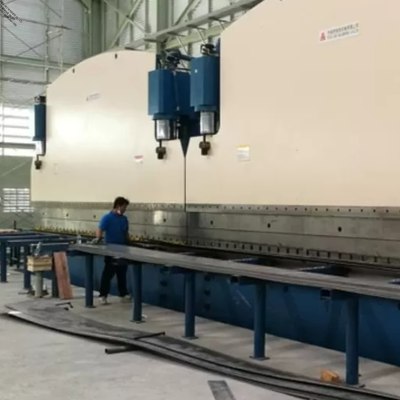

The 2-WE67K-650/7000 dual linkage CNC tandem hydraulic press brake consists of two 650-ton bending machines running synchronously, with total effective bending length reaching 14 meters. This machine is specially developed for heavy-duty thick-wall street light poles, communication monopoles and oversized highway high mast poles.

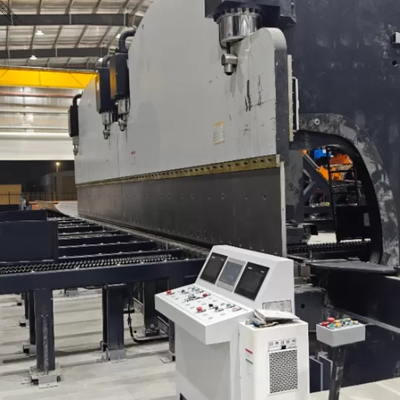

It features imported 2-axis CNC controller with mechanical table crowning compensation system. The complete machine is equipped with high-standard hydraulic components, wear-resistant oil cylinder seals, high-precision linear grating rulers and complete electrical control parts to ensure stable long-term heavy-load operation.
Complete supporting mold kits and automatic feeding & side unloading systems are available. Machine surface painting color and material feeding production direction can be fully customized according to customer's on-site workshop layout, providing one-stop bending forming solution for various steel poles.
Technical Specifications
No. Item Unit Value
1 Machine Type - Multi-unit Tandem Electro-hydraulic Synchronous CNC Press Brake
2 Nominal Working Force Ton 2×650
3 Single Worktable Length mm 7000, Total Linked Length 14000
4 Distance Between Two Side Housings mm 5600
5 Throat Depth mm 1500
6 Max Opening Height mm 1200
7 Ram Stroke mm 320
8.1 Rapid Down Speed mm/s 70
8.2 Working Bending Speed mm/s 7.5
8.3 Return Speed mm/s 75
9 Main Pump Motor Power kW 2×45
10 CNC Controller - Imported 2-Axis System, Y1+Y2 Dual Axis + Mechanical Crowning System
11 Main Cabinet Electric Standard - Industrial Grade Complete Electrical Components
12 Cylinder Seal Type - Wear-resistant Imported Oil Seal
13 Hydraulic Pump Standard - High Pressure Stable Hydraulic Pump
14 Main Hydraulic Valve Standard - High Precision Electro-hydraulic Proportional Valve
15 Linear Grating Ruler Standard - High Precision Long Stroke Grating Ruler
16 Single Machine Net Weight kg 80000, Total 160000
17 Overall Dimension L×W×H mm 30000×3900×6000 (Including Front & Back Feeder + Side Unloading Device)
18 Ground Clearance Height mm 4500
19 Transportation Mode - Disassembled split shipment; our engineers will go overseas for on-site assembly & commissioning
 Optional Equipment(you can choose bolow options with machine)
Serial No. Details
1.1 Standard 18mm thick punch holder for regular street poles, total length 14m

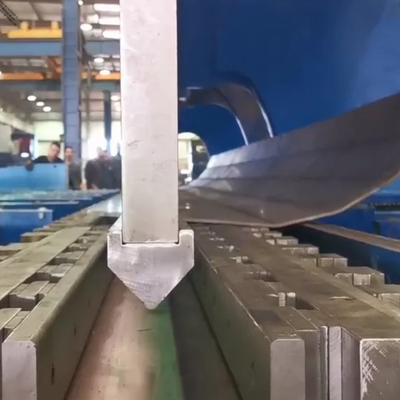

1.2 R2 punch set for min Φ60 octagonal tapered light poles, length 14m
1.3 Adjustable universal bottom die, total length 14m
1.4 7-times forming double taper conical pole mold
Taper ratio: 11/1000 (Φ60~236) & 13/1000 (Φ60~268)
Applicable pole wall thickness: 3~4mm, sectional split structure, total length 16m
1.5 Reinforced stiffeners for both sides of upper punch holder, length 14m
1.6 40mm thick heavy-duty punch holder for high mast & monopole production, length 14m
1.7 R5 special punch set for thick-wall high mast & monopole, length 14m
1.8 Middle insert bottom die 60×100 for octagonal poles, match adjustable base die, length 14m
1.9 Heavy-duty pushing-type pole side unloading system
1.10 Motorized front & rear feeding system (8 sets total: 4 front + 4 rear)
Independent fast/slow dual speed control for precise plate positioning
1.11 Thermal insulated electrical cabinet with industrial air conditioner
1.12 Oil tank air cooling system
1.13 Complete set of spare parts for 650-ton press brake
1.14 Single-function automatic feeding & bending system
Contains steel plate lateral roller rack, CNC front-rear feeding unit & side positioning device
Suitable for octagonal & polygon poles, not applicable for tiny conical poles
Performance Advantages
Performance Item Detailed Description
Dual Y1/Y2 Axis Synchronous Control Dual linear grating rulers installed on both ram sides to feedback real-time position signal for independent cylinder control
Super High Rigid Welded Frame Integrated frame combined with oil tank, worktable, side housings and ram, excellent load-bearing & anti-deformation capacity
High Precision Electro-hydraulic Proportional Synchronization System Low internal friction, high-response electromagnetic drive, stable continuous output force for synchronous ram movement
Independent Grating Mount Bracket Design Rulers fixed on C-shaped brackets instead of machine housings, measurement data will not be disturbed by frame bending during pressing
Precise Dual-Machine Tandem Linkage Control Switch to synchronous mode on main machine panel; CNC system unifies position signals of two units to synchronize fast down, speed shift, bending & return speed
Multi-language Intelligent CNC System Auto calculate bending tonnage, dead point and speed transition position; support tiny ram tilt for special customized bending requirements
Complete Guiding, Measuring & Hydraulic Balancing System Stable forming precision for full-length workpieces and eccentric bending jobs
Mechanical Worktable Crowning Compensation Automatically offset worktable deflection under heavy load to guarantee uniform finished pole precision
Wear-Resistant Heat-Treated Hydraulic Cylinder Good self-lubricating performance, low failure rate and long service life
Flexible Customization Support Machine paint color and material feeding direction can be adjusted freely according to customer's factory layout
Applications
Pole Type Processing Scenario
Tapered street light pole 14m long steel plate one-step bending forming
Octagonal & polygon lamp pole Special octagonal mold precise angle forming
Large thick-wall high mast pole Heavy-load tandem bending for oversized highway lighting poles
Communication monopole / 5G smart pole Thick wall steel plate bending & forming
Conical tapered light pole 7-pass segmented taper mold production
Service & Support
Service Item Service Content
Warranty Term 12 months full machine warranty; 24 months free warranty for hydraulic cylinders, pumps, valves and CNC controller
Spare Parts Supply Long-term supply of original vulnerable spare parts at factory cost
Oversea Technical Service Professional engineers available for overseas disassembly guidance, on-site assembly, commissioning and operator training
Remote Online Support 24/7 video call, email & phone technical troubleshooting support
Attached Documents Full English operation manual, bending parameter guide and operation training video
Frequently Asked Questions
Question Standard Answer
What is the maximum effective bending length of this 2-WE67K-650/7000 tandem press brake? Two 7000mm single machines work synchronously, total effective bending length reaches 14 meters, perfectly match long street poles, communication monopoles and large high mast poles.
Can I customize machine surface color and production feeding direction? Yes, machine painting color and material feeding layout can be fully customized to fit your factory space and production flow.
What core configuration does this heavy-duty tandem bending machine adopt? It is equipped with imported dual-axis CNC system, high precision electro-hydraulic proportional synchronous hydraulic system and complete industrial electrical control components, stable for long-term heavy load production.
