| Brand Name: | CMC |
| MOQ: | 1 set |
| Price: | Negociate |
| Payment Terms: | T/T, L/C |
| TECHNICAL FEATURES | |||

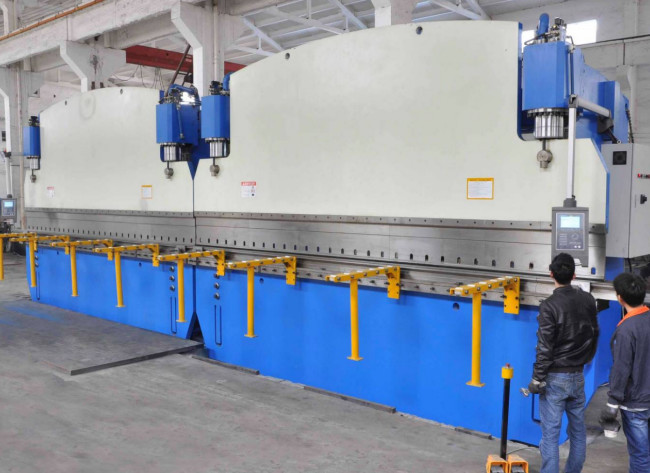

| 1 | Type | Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro | |
| 2 | Working force | 2X320Ton | |
| 3 | Length of table | 2X6000mm | |
| 4 | distance between frames | 4800mm | |
| 5 | Throat depth | 720mm | |
| 6 | Open height | 750mm | |
| 7 | Stroke | 250mm | |
|
8 |
Working Speed |
Unload | 70mm/s |
| Working | 7.5mm/s | ||
| Return | 75mm/s | ||
| 9 | Main motor | 2x22kw (Siemens brand) | |
| 10 | CNC system |
Type: DELEM DA53T Delem Co., Netherlands 2 (Y1,Y2) |
|
| 11 | Tool |
See the next page Table WITH mechnical crowning system |
|
| 12 | Seal in the cylinders | NOK or SKF type | |
| 13 | Hydraulic components | BOSCH-Rexroth - , Germany | |
| 14 | Hydraulic pump | SUNNY , USA | |
| 15 | Linear Raster displayer sensor | FAGAR, SPAIN | |
| 16 | Main Electric Elements in cabinet | Schneider | |
| 17 | weight | 2x34500 kg | |
| 18 | Overall size(mm) LxWxH | 2x6200x3065x4832 | |
| 19 | Packing: |
With plastic cover The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it.
|
|
