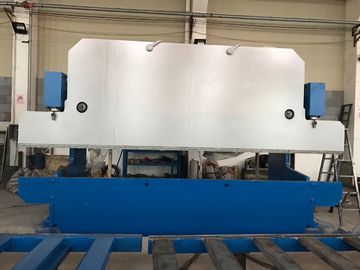

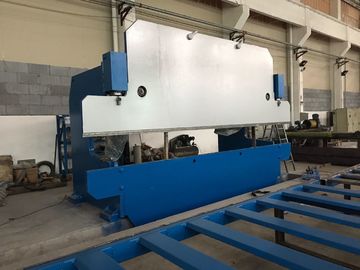

High Efficiency CNC Hydraulic 3mm 100 Ton Press Brake & Bending Machine

High Efficiency CNC Hydraulic  3mm 100 Ton Press Brake & Bending Machine
High Efficiency CNC Hydraulic  3mm 100 Ton Press Brake & Bending Machine High Efficiency CNC Hydraulic  3mm 100 Ton Press Brake & Bending Machine

Large Image :  High Efficiency CNC Hydraulic 3mm 100 Ton Press Brake & Bending Machine

Product Details:
Place of Origin: Wuxi-China
Brand Name: CMC
Model Number: WE67K-100/4000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Metal pallet
Delivery Time: According requirement
Payment Terms: T/T, L/C
Supply Ability: According requirement

High Efficiency CNC Hydraulic 3mm 100 Ton Press Brake & Bending Machine

High Light:

cnc hydraulic press brake bending machine


cnc bending machine

Detailed Product Description:

CNC Control System:

Delem DA-52

Function: Bending Steel Plates
Product Name: CNC Hydraulic Press Brake Steel Sheet Thickness: 3mm
Steel Sheet Width: 4000mm Use: Metal Plates

Quick Detail:
CNC Hydraulic Press Brake for Stainless steel decoration industry 3mm 100T/4000mm
Select And Use DELEM DA52 CNC Control System
1. punch force: 1000KN
2. bending max steel sheet width :4000mm
3. bending max steel sheet thickness :3mm
1. With stylish design, high rigidity, high speed.
2. Electro-hydraulic servo system,closed loop control system controls accuracy.
3. Worktable adopts hydraulic deflection compensation to ensure the accuracy of the workpiece.
4. Back gauge is driven by servo motor ,adoapted ball-screw ,and linear guide way,it could make sure    positioning accuracy.
CNC Hydraulic Press Brake is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.
Main Technical Features

NO. Name Value Unit Remark
1 Working force 1000 KN
2 Length of table 4000 mm
3 Distance of column 3100 mm
4 Throat depth 320 mm
5 Open height 475 mm
6 stroke 200 mm
7 Speed of ram slide block Approach 120 mm/s
Working 10 mm/s
Return 110 mm/s
8 Main motor 7.5 KW
9 Overall dimension Length 4250 mm
Width 1955 mm
Height 2855 mm
10 Weight 11000 Kg
11 Volume of oil tank 380 L

Competitive Advantage:
1) Our machine performance quality and chcheap, known in the industry.
2) One year guarantee.
3) Fast and high quality after-sales service.
4) We can design the machines according to customers’ special requirement.
5) We have professional team for service.
Communication with customers
A: what is difference during DA-52, DA-56, DA-65W and DA66T?
About CNC press brake machines, usually, we suggest four kinds of controller system more often: Delem DA-52, DA-56, DA-65W, DA66T Following is their characters:
DA-52 control system:

  1. With LCD true-color display
  2. Max control 4 axis(Y1,Y2 and two auxiliary axis)
  3. worktable crowning compensation control
  4. tooling, material and product library
  5. USB interface
  6. Advanced Y axle control algorithm, it can control closed loop, also open loop

DA-56 control system:

  1. With LCD true-color display
  2. 2D programming
  3. Bending process
  4. Developed length calculation
  5. worktable deflection compensation control
  6. tooling, material and product library
  7. USB interface
  8. Servo control, frequency control and AC motor control

DA65W controller system:

  1. Modular structure, max 20 axis
  2. Built-in PLC reduces machine circuit design, let the machine more stable
  3. Processing automatic calculation and optimization
  4. self diagnosis function supply diagnosis for the whole system and components function
  5. multi-language selection
  6. 3.5" floppy drive and RS232 interface, program and parameter can realize external storage, online and offline programming.
  7. 2 D graphics mode programming, adopts different gray scale to display processing workpiece, tooling.
  8. It can works 2500 program, 90 tooling.
  9. Calculate clamping point, tool safe area, bending force, unloading distance and worktable compensation.

DA66T controller system:

  1. Error message prompting system and help text. It can supply timely warning for your error programming and wrong operation, which save much time that looking for error.
  2. Standard Ethernet interface, connect windows
  3. real-time windows system, multi-task treatment and file management
  4. USB interface, connect external device: mouse and fingerboard
  5. Colorful display: 12 inch
  6. TFT 2D graphics mode programming
  7. Automatic bending processing
  8. PLC function
  9. operation warning system
