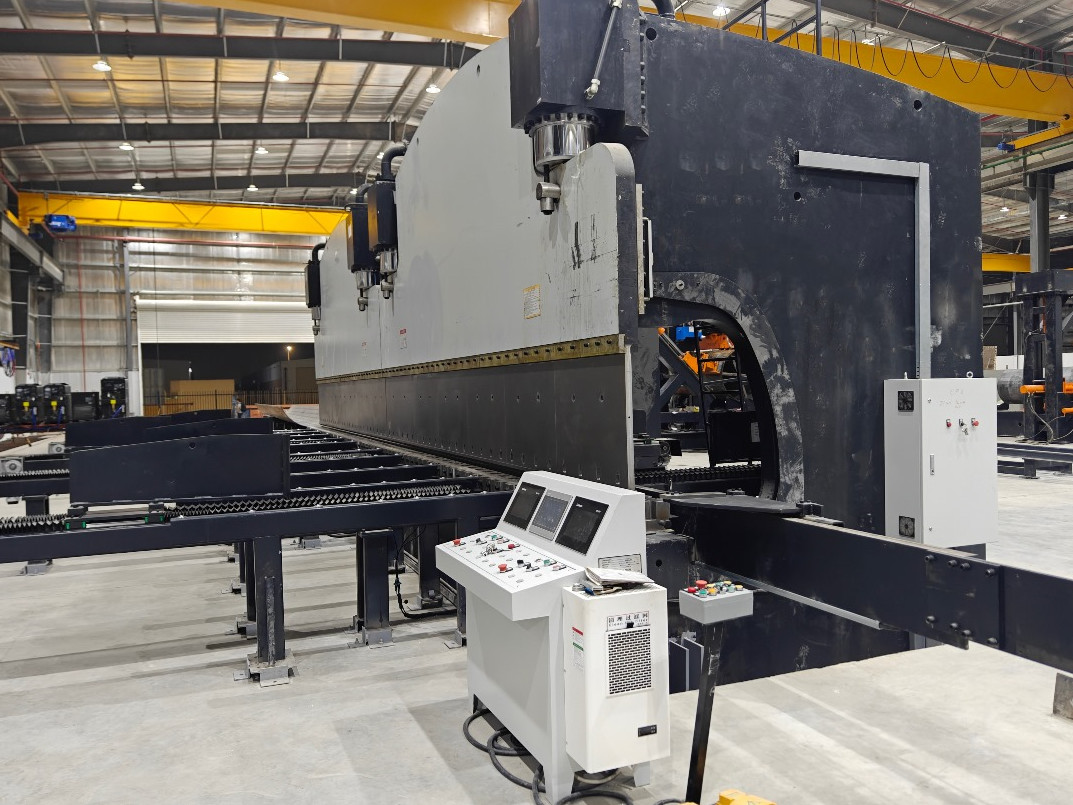

40mm DELEM DA66T Automatic large 2 set cnc tandem press brake machine

40mm DELEM DA66T Automatic large 2 set cnc tandem press brake machine
40mm DELEM DA66T Automatic large 2 set cnc tandem press brake machine
40mm DELEM DA66T Automatic large 2 set cnc tandem press brake machine 40mm DELEM DA66T Automatic large 2 set cnc tandem press brake machine 40mm DELEM DA66T Automatic large 2 set cnc tandem press brake machine 40mm DELEM DA66T Automatic large 2 set cnc tandem press brake machine 40mm DELEM DA66T Automatic large 2 set cnc tandem press brake machine

Large Image :  40mm DELEM DA66T Automatic large 2 set cnc tandem press brake machine

Product Details:
Place of Origin: Wuxi,china
Brand Name: CMC
Model Number: 2-WE67K-3000/7000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Metal pallet
Delivery Time: According requirement
Payment Terms: Down Payment 30% T/T ,70% T/T Before Shipping
Supply Ability: According requirement

40mm DELEM DA66T Automatic large 2 set cnc tandem press brake machine

Description
Highlight:

steel plate bending machine

,

metal press brake

Detailed Product Description:



CNC Control System:

Delem DA-52

DA-56

DA-66T



Function: Bending Steel Plates
Product Name: CNC Tandem Press Brake Steel Sheet Thickness: 40mm
Steel Sheet Width: 14000mm Use: Metal Plates





Quick Detail:

40mm DELEM DA66T Large Multi-Machine Hydraulic CNC Tandem Press Brake 2-3000T/7000mm

Select And Use DELEM DA66T CNC Control System

1. punch force: 60000KN

2. bending max steel sheet width :14000mm

3. bending max steel sheet thickness :40mm





Description:



1. Electro-hydraulic servo system,closed loop controls slider running accuracy.

2. The unique patented technology:bilateral deflection compensation of the large press brake .

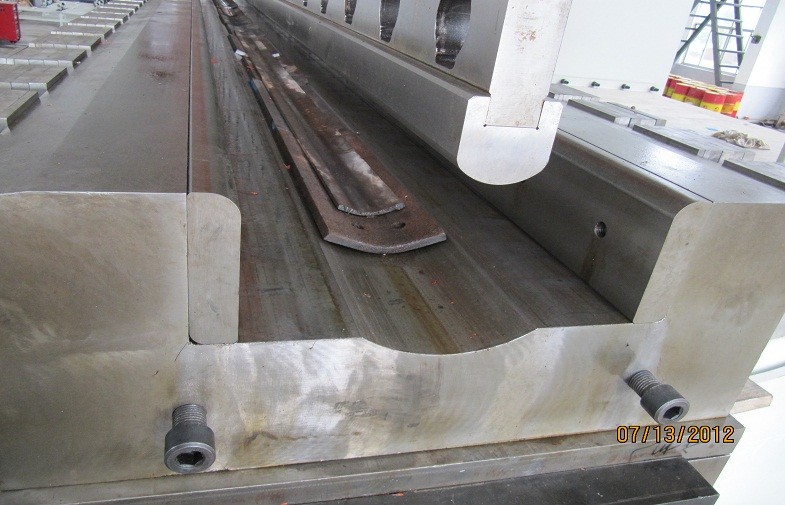

3. Open width adjustable inserts die to meet a variety of workpieces.
4. A variety of auxiliary institutions could meet users’ requirements and make the process more convenient and efficient.

5. The frame of machine is composed of tank, worktable, left and right housings and

ram. So it has high strength and good rigidity. Also it takes vibration to eliminate

stress.

6. Synchronization working principal of both machines:Adopting electric-hydraulic

proportional valve to ensure the synchronization of both machines. The proportional valve is made by BOSCH company with very good performance such as small friction between mechanic action pairs, fine electronic amplifier and electric magnet with high controlling force and continuous action. There are two raster displayers on both sides of machine to inspect the position of ram continuously and feed back the signal to control system, then the control system will control electric-hydraulic valve to make two cylinders synchronization on one machine. Because the raster displayers are installed to “C” plates, not on housing plates directly, the deflection of ram and frame when working will not effect its measuring and controlling precision. When two machines working together, the differential potentiometer installed between two machines will transfer the mechanic synchronizing signal into electronic one and feed back to synchronization plate and control system. The signal will be enlarged by BOSCH amplifier to control the synchronization of both machines by controlling electric-hydraulic proportional valve. So the synchronization of two machines is achieved with high precision.

7. Through computer,the operator could communicate with machine. The computer has several service language, calculate and adjust the bending force automatically. Also it could calculate and control the dead point, speed changing point.The strokes (Y1, Y2) of ram could make a small tilt to meet the special requirement of user.

8. Equipped with good guiding system, position measuring system and hydraulic balance system to meet the requirements of full length job and eccentric job.

9. Worktable compensation unit is adopted to make up for deflection of machine when working to make sure the precision of work piece.

10. The surface of cylinder has good wearing and heat treatment, so it has good lubrication and long service life





Applications:



CNC press brake machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.





Specifications:



Main Technical Features

NO. Name Value Unit Remark
1 Working force 2×30000 KN
2 Length of table 2×7000 mm
3 Distance of column 5240 mm
4 Throat depth 1600 mm
5 Open height 1540 mm
6 stroke 450 mm
7 Speed of ram slide block Approach 60 mm/s
Working 6 mm/s
Return 60 mm/s
8 Main motor 2×4×45 KW
9 Overall dimension Length 7300 mm
Width 10800 mm
Height 8100 mm
10 Weight 2×335000 kg
11 Volume of oil tank 2×5340 L













































































Competitive Advantage:



1) Our machine performance quality and cheap, known in the industry.

2) One year guarantee.

3) Fast and high quality after-sales service.

4) We can design the machines according to customers’ special requirement.

5) We have professional team for service.





Communication with customers



A: what is difference during DA-52, DA-56, DA-65W and DA66T?



About CNC press brake machines, usually, we suggest four kinds of controller system more often: Delem DA-52, DA-56, DA-65W, DA66T Following is their characters:

DA-52 control system:

  1. With LCD true-color display
  2. Max control 4 axis(Y1,Y2 and two auxiliary axis)
  3. worktable crowning compensation control
  4. tooling, material and product library
  5. USB interface
  6. Advanced Y axle control algorithm, it can control closed loop, also open loop

DA-56 control system:

  1. With LCD true-color display
  2. 2D programming
  3. Bending process
  4. Developed length calculation
  5. worktable deflection compensation control
  6. tooling, material and product library
  7. USB interface
  8. Servo control, frequency control and AC motor control

DA65W controller system:

  1. Modular structure, max 20 axis
  2. Built-in PLC reduces machine circuit design, let the machine more stable
  3. Processing automatic calculation and optimization
  4. self diagnosis function supply diagnosis for the whole system and components function
  5. multi-language selection
  6. 3.5" floppy drive and RS232 interface, program and parameter can realize external storage, online and offline programming.
  7. 2 D graphics mode programming, adopts different gray scale to display processing workpiece, tooling.
  8. It can works 2500 program, 90 tooling.
  9. Calculate clamping point, tool safe area, bending force, unloading distance and worktable compensation.

DA66T controller system:

  1. Error message prompting system and help text. It can supply timely warning for your error programming and wrong operation, which save much time that looking for error.
  2. Standard Ethernet interface, connect windows
  3. real-time windows system, multi-task treatment and file management
  4. USB interface, connect external device: mouse and fingerboard
  5. Colorful display: 12 inch
  6. TFT 2D graphics mode programming
  7. Automatic bending processing
  8. PLC function
  9. operation warning system
