High performance Tube / Light Pole Shut-Welding Machine max 600/16000

Product Details:
Place of Origin: Wuxi,China
Brand Name: CMC
Model Number: 600/16000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negociate
Packaging Details: naked packing and fixed in container properly
Delivery Time: 50-60 days
Payment Terms: T/T, L/C
Supply Ability: Negociate

Detail Information

High Light:

automated welding machine

,

light pole welding machine

Product Description

POLE SHUT-WELDING MACHINE

MODEL: 600/16000

Proprietary characteristics

  1. this system can weld the pole from small end to bottom end full area and almost no left length out of welding. This way is reduced the manual working of the next process.
  2. The clamping roller is 5 sets from all different direction, bottom with V type supporting trolly, the advantage is reduce the roller pressure to the pole surface, and reduce the scratch on the surface. It is much better for octagonal pole welding.. (A machine with 6 sets clamping roller cannot be used for an octagonal light pole , it will deform the pole)
  3. The pulling trolly with motorized fast returning back function, no need operator to push back manually and it reduces the labor intensity of operators.
  4. Submerged Arc Welding .
  5. with pole back guiding device.



APPLICATION: FOR AUTOMETIC SEAM WELDING POLE



It is suitable for one shell type polygonal and circle taper(Conical) light pole and one or two shell type highmast. it is automatic welding line, the dolly with speed adjustable frequency motor can pull the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.



The machine includes the following items:

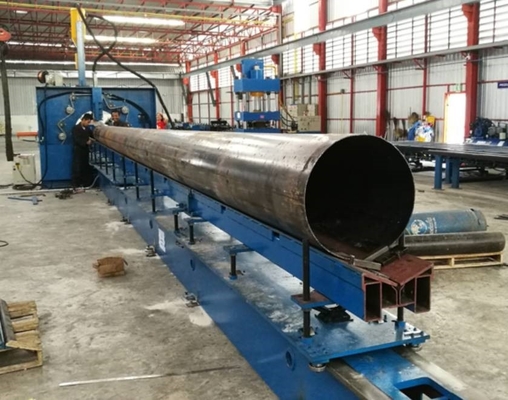

1. Long working table with gear and rack driving system for pull trolly.



2. Trolly with V support table for pulling pole, including speed adjust frequency motor, driving system, guiding device.

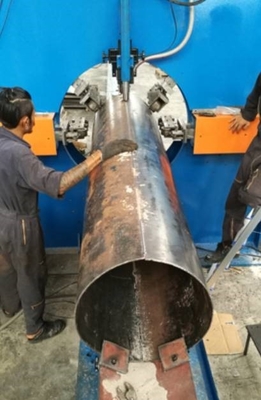

3. Hydraulic clamping and welding unit,including the 5 sets clamping wheels for polygonal and conical pole

4. Submerged Arc Welding system, including power, welding wire feeding system,flux recycle system, welding ground wire.

5. V type adjustable working table



6. hydraulic system, pump, motor, control system



7.Elctrical control system, including frequency driver, operation panel,cable etc









TECHNICAL FEATURES
1 Diameter 60-600mm
2 Workable length 16000 mm
3 Dolly length 19000 MM
4 Light pole thickness Light pole diameter: 60~300mm 2.8~5mm
Light pole diameter: 200~600mm 4~8mm
5 Clamping feet quantity 5 units, ( the advantage is that more clamping unit , it gives less pressure and less mark on the surface of pole.
6 Power of Motor for Pump 4 KW
7 Power of Motor for pushing dolly 4 KW, AC speed changeable type.
8 Welding Machine 500A, Submerged Arc Welding
9 Welding wire diameter 1.6~2.0 mm
10 Working Speed 1~3m/min adjustable
11 Return speed the return speed of the trolly is adjustable , can be 7 m/min
12 Main Electric Elements Schneider (France brand)
13 Main motor frequency driver

Schneider (France brand)

Or Delta (Taiwan brand)

14 Main motor Brand Siemens, or WNM, Chinese famous brand
15 Welding power Brand Panasonic(Japanese brand)
16 Weight 12000 kg
17 Overall sizes (mm) 36000x4000x4500 mm (LXWXH)
With Dolly fast going back device When finish the pole welding, after press the button, the dolly will return back head with fast speed. (note: manual type machine, the dolly must be pushed back by operator , it is hard work and needs more time)
