Seam Welder Max 450mm Diameter 14000mm Lenth - Shut Welding Machine For Light Pole
Quick Detail:
| Name | Other Name | Brand Name | CMC |
| Light pole shut-welding machine |
Seam welder Close welding machine Pole welding machine Tube welding machine
|
Feature | Specially designed for circle and polygon pole/tube |
| Welding capacity |
Diameter: 60-500mm Thickness: 2.5—8mm Length: max 14 meters |
Our models |
500/14000
|
Description:
APPLICATION: FOR AUTOMETIC WELDING LIGHT POLE MAX LENGTH 14000MM.

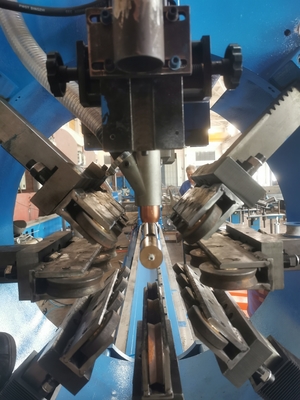

LIGHT POLE SHUT-WELDING MACHINE MODEL: 500/14000, it is suitable for one piece type polygonal (Octagonal) and circle taper(Conical) light pole. it is automatic welding line, the trolley with speed adjustable frequency motor can push the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.
1. Long working table with gear and rack driving system for push trolley.
2. Trolly for pushing pole, including speed adjust frequency motor, driving system, guiding device, and pneumatic clamping system.
3. Hydraulic clamping and welding unit,including the 8 sets clamping wheels for polygonal and conical pole, guide system
4. Submerged Arc Welding system, including power, welding wire feeding system,flux recycle system, welding ground wire.
5. with mute roller supporting standard
6. hydraulic system,CNC Proportional valve, pump, motor, control system
7. Pneumatic system
8. Elctrical control system, including frequency driver, operation panel, cable etc.
Specifications
| TECHNICAL FEATURES | |||
| 1 |
Workable Diameter
|
60-500mm, | |
| 2 |
Workable length
|
14000 mm | |
| 3 |
DOLLY LENGTH |
2000 MM | |
| 4 |
Suitable light pole Thickness base on mild steel Q235
|
Light pole diameter: 60~500mm | 2.5~4.5mm |
| Light pole diameter: 250~450mm | 4~8mm | ||
| 5 |
Power of Motor for Pump
|
4 KW | |
| 6 |
Power of Motor for pulling dolly |
4 KW, AC speed changeable type. 4 KW. |
|
| 7 | Welding machine | 500A Panasonic submerged arc welding machine | |
| 8 |
Welding wire diameter |
1.6~2mm welding wire, according the pole thickness to do selection |
|
| 9 | Working Speed | 1~3m/min (Note: different thickness speed will be different ) | |
| 10 |
Production Speed生产速度: |
8~12 pieces/hour, Based on the general street light pole with a length of 6 meters, the actual operation depends on the loading and unloading efficiency of operators and the selection of loading and unloading devices |
|
| 11 | Gross weight | 7500 kg | |
| 12 |
Overall sizes (mm) |
31000x2000x2000 mm | |
OPTION:( detail see attached photos)
CNC control automatic adjustment, CNC control system, as the light pole diameter changes, automatically adjust the clamping pressure, automatically adjust the position of the clamping roller, automatically match the feeding speed and position, and keep the welding seam always in a closed state to ensure smooth welding.
Through the camera installed on the machine head, the welding seam is reflected on the screen of main control panel, making the tracking of the welding seam simple and easy, and reducing the labor intensity of the operator for monitoring of the welding.
With networked system, after the machine is connected to the Internet on the client's side, the machine supplier can assist the client with remote fault diagnosis and remote parameter adjustment. It is convenient for customers to quickly resume production.
Street light pole loading and unloading system: On the left side of the machine, there is a storage rack, which can store 20~30 poles (the number varies according to the size of the poles). After the welding is completed, press the button, and the street light pole will be discharged to discharge On the storage rack which on right side of machine, it can store 20 poles (the number varies according to the size of the poles). No overhead crane is required from each pole loading to unloading.
