Product Details:
|
| Condition: | New | Automation: | Automatic,manual,electric |
|---|---|---|---|

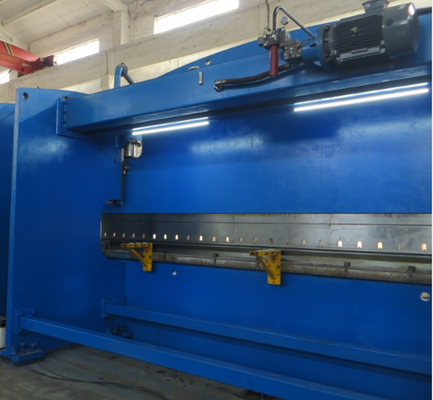

| Name: | CNC Hydraulic Press Brakes,electro Hydraulic Synchronous Matel Sheet Steel CNC Press Brake | Weight: | 8t,as Type |
| Application: | Construction Projects,press Brake,metal Bending | Material: | Iron And Metal Sheet,Carbon Steel,Stainess Steel |
| High Light: | Tandem CNC Hydraulic Press Brake,stylish cnc hydraulic press brake,cnc electro hydraulic press brake |
||
| TECHNICAL FEATURES | |||
| 1 | Type | Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro | |
| 2 | Working force | 2X320Ton | |
| 3 | Length of table | 2X6000mm | |
| 4 | distance between frames | 4800mm | |
| 5 | Throat depth | 720mm | |
| 6 | Open height | 750mm | |
| 7 | Stroke | 250mm | |
|
8 |
Working Speed |
Unload | 70mm/s |
| Working | 7.5mm/s | ||
| Return | 75mm/s | ||
| 9 | Main motor | 2x22kw (Siemens brand) | |
| 10 | CNC system |
Type: DELEM DA52S Delem Co., Netherlands 2 (Y1,Y2) |
|
| 11 | Tool |
With 1 punching and 1 multi V block bottom die for making min 60mm OD octagonal taper type light pole. The up tool holder thickness is 18mm The working table with crowning system(compensation system) With front and back sheet supporting stand |
|
| 12 | Seal in the cylinders | NOK, Japan brand or SFK | |
| 13 | Hydraulic components | BOSCH-Rexroth - , Germany | |
| 14 | Hydraulic pump | SUNNY , USA | |
| 15 | Linear Raster displayer sensor |
FAGUR , SPAIN |
|
| 16 | Main Electric Elements in cabinet | Schneider | |
| 17 | weight | 2x34500 kg | |
| 18 | Overall size(mm) LxWxH | 2x6200x3065x4832 | |
| 19 | Packing: |
With plastic cover The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it.
|
|
