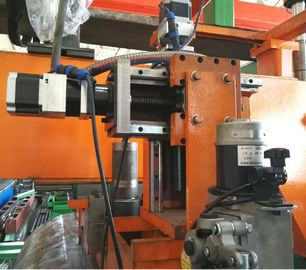

0.5m / min High Mast Pole Shut Welding Machine Model Hm1600/16000

Product Details:
Place of Origin: WUXI,CHINA
Brand Name: CMC
Model Number: HM1600/16000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: According to the machine requirements
Packaging Details: Nude
Delivery Time: According to the requirements
Supply Ability: According to the actual situation

Detail Information

Usage: Welding Steel Plate Warranty: One Year
Welding Mode: TIG MIG MAG SAW PAW Color: Custom
High Light:

1600mm Pole Shut Welding Machine


0.5m/min Pole Shut Welding Machine

Product Description



MODEL: HM1600/16000





HIGHMAST POLE SHUT-WELDING MACHINE , it is suitable for one shell or two shell type polygonal and circle taper pole. it is automatic welding line, the gantry type structure is fixed and with welding system, fully pole length trolly with SERVO motor for speed adjustable moving , The hydraulic cylinder push the clamping wheel to close the pole and do welding at same time.

For two seam pole, when first seam welding finished, the bottom roller will rise and rotate the pole to another seam position to start second seam welding.


The machine includes the following items:

  1. Long working table for trolly and pole moving.

  2. Main gantry unit

  3. Driving system for pole trolly moving

  4. Hydraulic clamping (including the clamping wheels for pole)

  5. Submerged Arc Welding system, including welding wire feeding system.

  6. The flux recovering system

  7. Inner copper bar with water cooling system

  8. Rising type roller , 2 units

  9. hydraulic system

  10. Control system


1 Workable Diameter 800-1600mm
2 Workable length 16000 mm
3 Pole thickness 6~16mm
4 Clamping feet quantity 3 units.
5 Power of Motor for Pump 5.5 KW
6 Moving Motor for trolly 7KW, AC servo
7 Vertical travel stroke 1100mm
8 Vertical travel working force 39ton(2 pieces cylinder x19.5 ton )
9 side travel working force 32ton x 2 piece
10 Welding Machine Submerged Arc Welding , 1250A
11 Welding wire diameter 2.5~4mm welding wire, according the pole thickness to do selection
12 Working Speed 0.5~2m/min (Note: different thickness speed will be different
13 Welding direction Welding start from base big end to top small end of shaft.
14 Penetration capability 90 %
15 Main Electric Elements Schneider (France brand)
16 PLC Siemens
17 Main motor frequency driver

Schneider (France brand)

Or Delta (Taiwan brand)

18 Main motor Brand (for hydraulic pump) Siemens
19 Servo motor Siemens
20 Welding power Brand and model

Submerged Arc Welding

Kaiyuan (Panasonic Janpan factory in China)

21 Weight 28 ton
22 Overall sizes (mm) 35000x5500x5100 mm (LXWXH)
