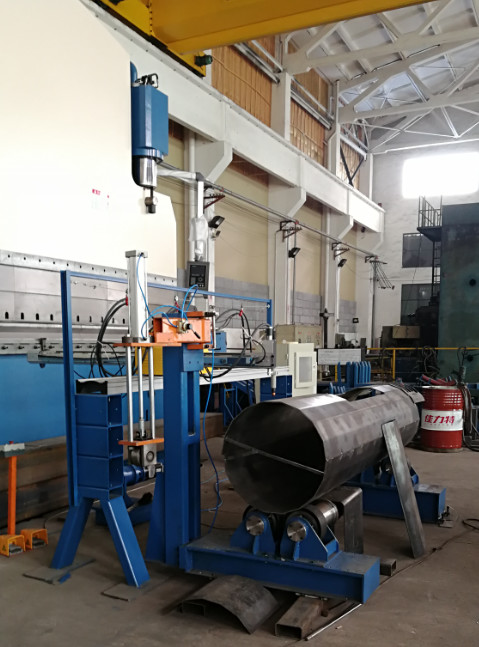

Model 680/2000 CNC 2000mm Light Pole Door Cutting Machine

Detail Information

High Light:

1500mm Light Pole Door Cutting Machine

,

8mm Light Pole Door Cutting Machine

Product Description

Application:

It is suitable for conical pole, round pole, octagonal light pole and highmast door CNC cutting, Also it can flat plate . The cutting shape can be circle, square, rectangle, elliptic type etc and any which can be draw designed by computer.

The cutting source is automatic plasma. So the cutting speed will be much fast, and cutting edge quality is much better then flame cutting.



Main parameters:

No. Item Parameter
1

Max. cutting length, X axis

2000mm (for once stroke cutting)
2

Max. cutting length, X axis

1500mm
3

Rotation angle, A axis

Any angle 0~360 degree
4 Min outer diameter 58mm
5 Max outer diameter  680mm
6 Max.length for pole  12000mm
7 Max.thickness for highmast  8mm
8 Plasma source

Hypertherm Powermax 65

(Made in USA)

9 Suggestion thickness for making hole and quality cutting.  8mm
10 Quality Cutting speed ,thickness 4mm 4250mm/minute
11 Quality Cutting speed ,thickness 6mm 2550mm/minute
12 Quality Cutting speed ,thickness 8mm 1700mm/minute
13

Max plasma edge cutting thickness(manual holding way)

Base on Plasma source

14mm

14 Light pole door cutting time for one normal light pole electrical door, the cutting time is about 30~40 seconds)
15 Main motor/Brand  Stepless motor/Chinese
16 CNC system  Si Dafeng(SF-2100S)
17 Nesting SOFTWARE SmartNest
18 Control axis  3 axis, X,Y,
19 CNC Plasma cutting torch  1 set
20 Arc voltage height controller HEAVTH HP105
21 height DEVICE  Plasma Torch height moving device, 1set
22 Environmental temperature 0-45℃
  Option:special big cabinet with cabinet type air condition , the CNC system and Plasma power souce inside. ( it needs additional cost) 0-55
23 Humidity  <90%, no condensation
24 Surroundings Ventilation, no big shake
25

Input voltage

(Can be made according to buyer’s country voltage requirement.)

Single phase,220V, 50HZ

Three phases, 380V, 50HZ
