High precise Portable Automatic Welding Machine , Welding Positiner auxiliary equipment

Product Details:
Place of Origin: wuxi,china
Brand Name: cmc
Certification: ISO
Model Number: HB series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: Down payment 30% T/T, 70% T/T before shipping
Supply Ability: According requirement

Detail Information

High Light:

automatic welding equipment

Product Description

Quick Detail:

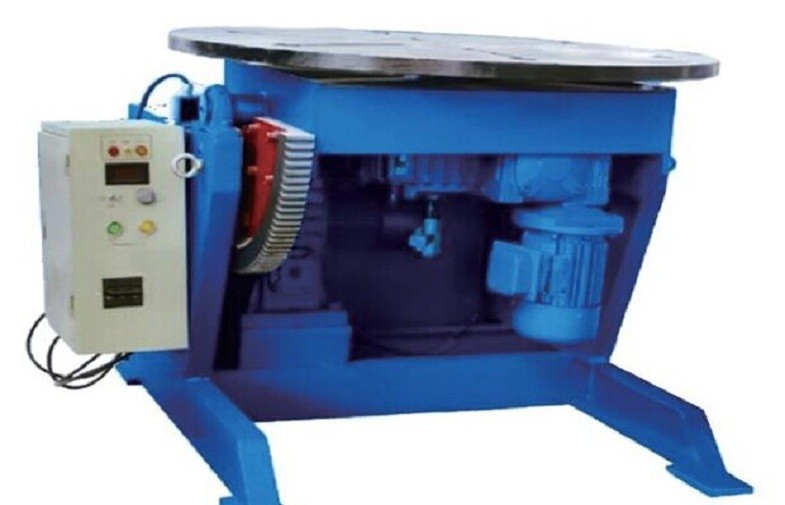

Name Welding Positiner
Other Name Positioner
Brand Name CMC
Feature Speed regulation type
Advantages: Delicate design, high precise rotation, small inertia, good braking and stable running.





Applications:



Positioner is a special welding auxiliary equipment in welding process. It is suitable for rotary work to get the ideal working position and welding speed.With operating machines, automatic welding machine, they can  composed to a welding center.





Features:



1, Delicate design, high precise rotation, small inertia, good braking and stable running.
2, There are many types such as side inclined type ,head-tail lifting rotary type, head-tail inclined type and double rotaty type for your selection.
3, The worktable adopts imported converter to adjust speed, runing stable .
4, The overturn of worktable adopts worm gear transmission. It can turnover within 120
° with constant speed, the torque is big.
5, Adopts manual control box for remote control,  easy to operate.
6, Application for weld r
otating workpiece such as bearing, disc, cylindrical shape , etc.
7, Equiped with welding operation machine to realize automatic welding, and it can be the ancillary equipmentfor for robot to achieve automatic welding.





Technical parameter:



Model HB-3 HB-6 HB-12 HB-30 HB-50 HB-100
Maximum.Loading Bearing kg 300 600 1200 3000 5000 10000
Worktable Turning Speed rmp 0.2-2 0.09-0.9 0.05-0.5 0.05-0.5 0.05-0.5 0.02-0.2
Worktable Turnover Speed rmp Manual or Electrically Driven 0.8 0.5 0.3 0.3 0.2
Worktable Size mm Φ600 Φ800 Φ1200 Φ1400 Φ1500 Φ2000
Wortable Turnover Angle 0-90° 0-120°
Maximum Eccentric Distance mm 150 200 250 300 300 400
Maximum Center-of-gravity Distance mm 200 150 200
KW Rotation Moter Power kw 0.37 0.75 1.1 1.5 2.2 3
Overturn 0.37 0.75 1.5 3 4 5.5
Speed regulation Type Frequency Stepless Speed Regulation





Other special positioners

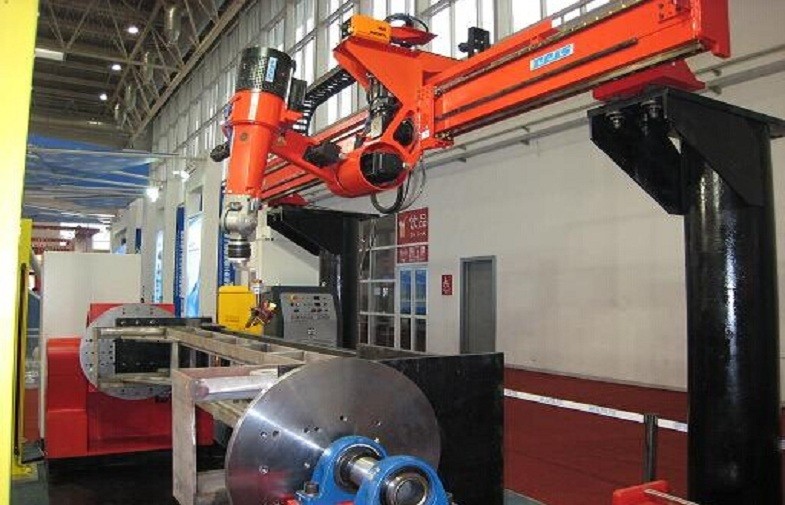

1.20T rotating platform

High precise Portable Automatic Welding Machine , Welding Positiner auxiliary equipment 0



2.Pipe positioner

.High precise Portable Automatic Welding Machine , Welding Positiner auxiliary equipment 1



3.Special welding positioner

High precise Portable Automatic Welding Machine , Welding Positiner auxiliary equipment 2



4.Pipe special welding machine for flangeHigh precise Portable Automatic Welding Machine , Welding Positiner auxiliary equipment 3
