High Mast Pole Assembly &Straightening Machine HJZ-1200

High Mast Pole Assembly &Straightening Machine HJZ-1200
High Mast Pole Assembly &Straightening Machine HJZ-1200 High Mast Pole Assembly &Straightening Machine HJZ-1200 High Mast Pole Assembly &Straightening Machine HJZ-1200

Large Image :  High Mast Pole Assembly &Straightening Machine HJZ-1200

Product Details:
Place of Origin: Wuxi, China
Brand Name: CMC
Certification: ISO9001-2000
Model Number: HJZ-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: According to requirements
Packaging Details: Sutable for container shipping
Delivery Time: 50-60 days
Payment Terms: TT,LC,FOB,CIF
Supply Ability: Negociate

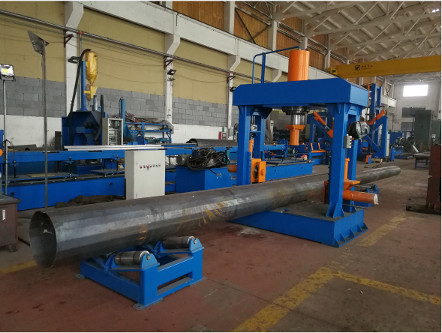

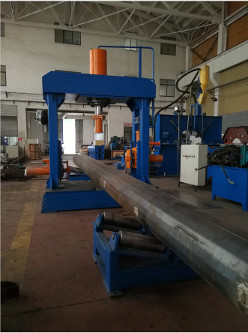

High Mast Pole Assembly &Straightening Machine HJZ-1200

Description
Color: Blue Function: Straighten
Application: For High Mast Pole Feature: Automatic
Diameter: 1200mm Thickness: 14mm
High Light:

sheet metal punching machine

,

cnc plate punching machine

HJZ-1200

High Mast Pole Assembly &Straightening Machine,model: HJZ-1200

(for High mast, Monopole, 5G pole)



Application:

1. It is mainly suitable for power transmission monopole, highmast and 5G pole. After bending, The two pieces of pole are assembled by the upper and side oil cylinders, and then spot welding is performed by hand to facilitate the next welding process.

2. Straighten the pole after longitudinal welding

3. Round the pole after welding to facilitate flange assembly.

主要技术参数MAIN TECHNICAL FEATURES

No. 项目Item 单位Unit 规格Value
1 型号Model   HJZ-1200
2

适合高杆灯杆,电力杆的最大直径

Max, diameter of the pole

mm 1200
3

适合高杆灯杆,电力杆的最大厚度

Max, thickness of the pole

mm 14mm
4 顶部油缸工作力Working force KN 800
5 顶部油缸最大行程 Max stroke Mm 550
6 顶部油缸活塞杆与下台面最大距离Max distance from rod to worktable Mm 1350
7 两侧缸顶出力 Two-side cylinder output force KN 200X2
8 侧缸行程 lateral cylinder stroke mm 400
9 两侧缸上下移动距离 Movement distance from upper to lower for two-side cylinder mm 600
10 液压最大工作压力Max working pressure MPa 21
11 工作台距底面高 Height above ground of worktable mm 305
12 立柱内宽 Column inner distance mm 1500
13 电机总功率(双泵) Total motor power kW 7.5+5.5
14 机器重量 Main part Weight kg 5000
15 主机外形尺寸Main part Overall size mm 1300*2200*2600



技术说明:Technical explain:

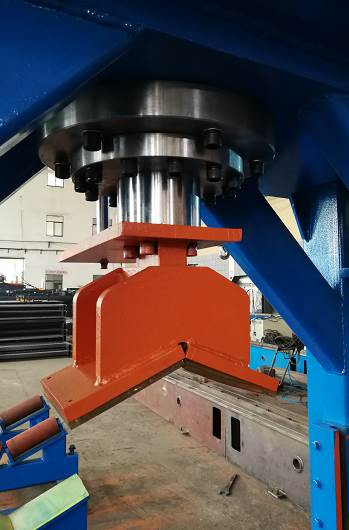

  • 本机为三梁工作台结构,油缸按装于上横梁中央上下运行,两侧缸按装于主机两侧面,侧缸可作上下运行.

The machine is triple-beam and working table structure, main cylinder is installed on the central of upper beam to do up and down. Two side-cylinder is installed in vertical column and it can move up and down.

  • 所有动作均为点动即按住相应的按钮即有相应的动作,松开后即停止,两侧缸可同时动作也可分别动作.

All the actions are manual mode, which means when press corresponding button, relevant action will be made and stop after release, and cylinder on two sides can also be operated separately or simultaneously.

  • 在机器的工作台前后位置按装两套托轮装置,以方便工件前后移动.

Two supporting rollers are installed in the work table’s anteroposterior position , in order to the pole go forward and backward easily.
