CNC Light Pole Door Cutting Machine 3 Axis, Diameter 680mm, Stroke 2000mm

1 set
MOQ
negotiable
Price
CNC Light Pole Door Cutting Machine 3 Axis, Diameter 680mm, Stroke 2000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Light Pole Door Cutting Machine
Max. Cutting Length: 2000mm
Model: 680/2000
Plasma Source: Hypertherm Powermax 65
Control Axis: 3 Axis, X,Y,A
Highlight:

680mm Light Pole Door Cutting Machine

,

2000mm Light Pole Door Cutting Machine

,

3 axis cnc cutting machine
Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: CMC
Payment & Shipping Terms
Packaging Details: Suitable for container shipment, both marine and inland transportation
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: According to requirement
Product Description

CNC HIGHMAST DOOR CUTTING MACHINE, MODEL : 680/2000



Application:

It is suitable for conical type and Polygonal type highmast door CNC cutting, . The cutting shape can be circle, square, rectangle, elliptic type etc and any which can be draw designed by computer.

The cutting source is automatic plasma. So the cutting speed will be much fast, and cutting edge quality is much better then flame cutting.



Main parameter:

No. Item Parameter
1

Max. cutting length, X axis

 2000mm (for once stroke cutting)
2

Rotation angle, A axis

 Any angle 0~360 degree
3

Min pipe outer diameter

 300mm
4

Max pipe outer diameter

 680mm
5

Max.length for pole

No limit
6

Max.thickness for highmast

10mm
7

Plasma source

Hypertherm Powermax 65

(Made in USA)
8

Suggestion thickness for making hole and quality cutting.

10mm
9 Quality Cutting speed ,thickness 4mm 4250mm/minute
10 Quality Cutting speed ,thickness 6mm 2550mm/minute
11 Quality Cutting speed ,thickness 8mm 1700mm/minute
12

Max plasma edge cutting thickness(manual holding way)

Base on Plasma source

14mm
13

Main motor/Brand

Stepless motor/Chinese,

14

CNC system

 Si Dafeng(SF-2100S)
15

Nesting Software

 SmartNest
16

Control axis

 2 axis, X,A
17

CNC Plasma cutting torch

 1 set
18

Arc voltage height controller

 HEAVTH HP105
19

height DEVICE

Plasma Torch height moving device, 1set
20

Environmental temperature

 0-45℃
21

Humidity

 <90%, no condensation
22 Surroundings Ventilation, no big shake
23

Input voltage

(Can be made according to buyer’s country voltage requirement.)

Single phase,220V, 50HZ

Three phases, 380V, 50HZ

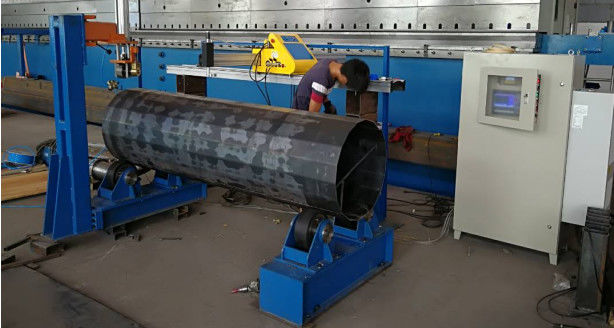

CNC Light Pole Door Cutting Machine 3 Axis, Diameter 680mm, Stroke 2000mm 0
