Product Details:
|
| Product Name: | Light Pole Door Cutting Machine | Size: | 350/2000 |
|---|---|---|---|
| Application: | Aluminum Octagonal Aluminum Pole | Outer Diameter: | 350 |
| Rotation Angle: | Any Angle 0~360 Degree | ||
| Highlight: | 2000mm Light Pole Door Cutting Machine,350mm Light Pole Door Cutting Machine,360 degree cnc aluminum cutting machine |
||

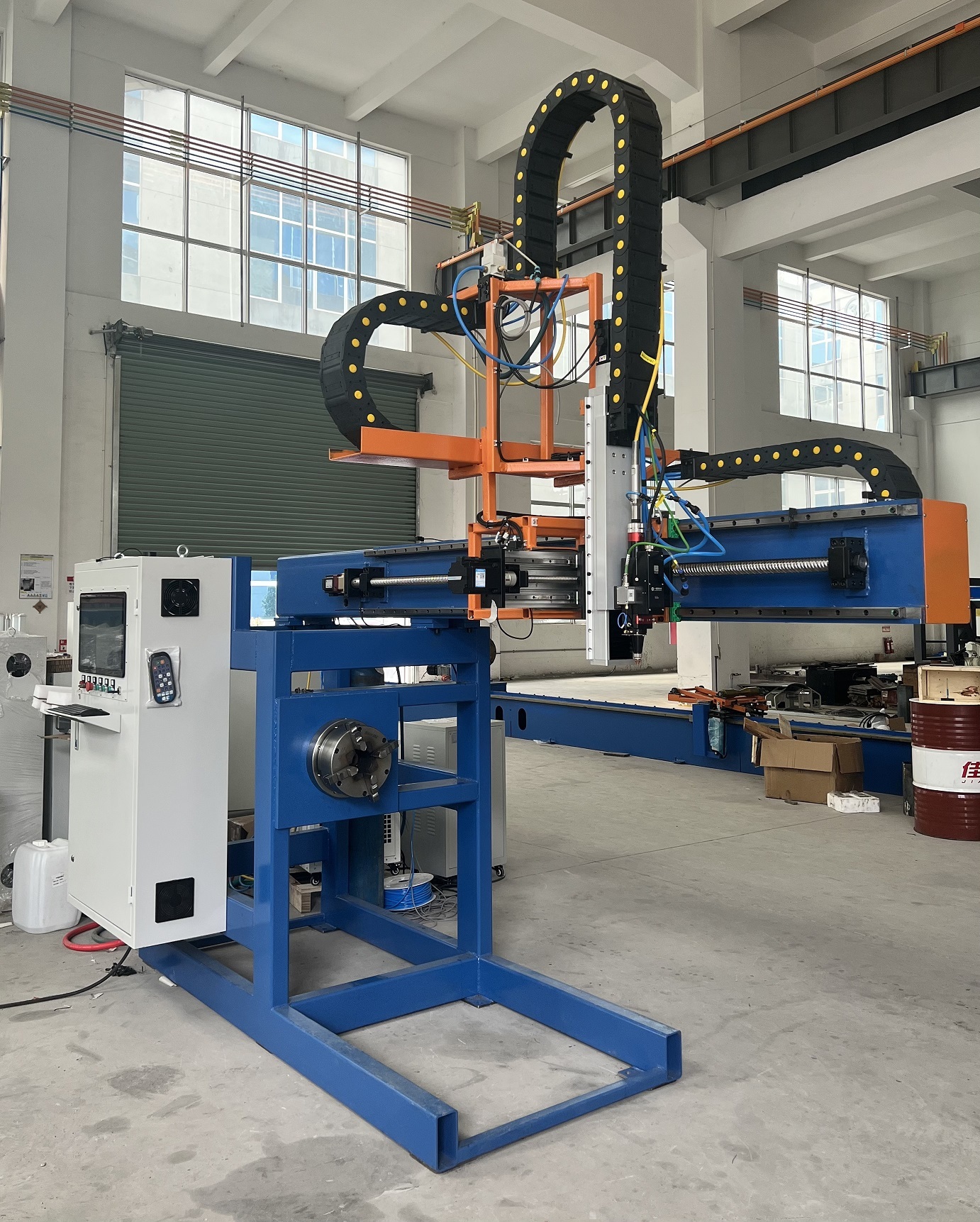

Aluminum Octagonal Conical Light Pole Door Cutting Machine
Description:
The cutting source is automatic plasma. So the cutting speed will be much fast, and cutting edge quality is better then flame cutting. Due to the use of the U.S.-made Hypertherm plasma power supply and torch, the cutting gap is relatively small. If it is cutting the light pole electrical door, the cut pieces are generally used as door covers.
Application:
It is suitable for conical pole, round pole, octagonal aluminum pole CNC cutting, The cutting shape can be circle, square, rectangle, elliptic type etc and any which can be draw designed by computer.
Main parameter:
| No. | Item | Parameter | |
| 1 |
Max. cutting length, X axis |
2000mm (for once stroke cutting) | |
| 2 |
Rotation angle, A axis |
Any angle 0~360 degree | |
| 3 | Min pipe outer diameter | 80 | |
| 4 | Max pipe outer diameter |
350(or according requirement) |
|
| 5 | Plasma source | Standard |
Hypertherm Powermax 45 Suitable max. thickness:6mm (Made in USA) |
| Option |
Hypertherm Powermax 65 Suitable max. thickness:10mm (Made in USA) |
||
| 6 | Max thickness for making hole and quality cutting. |
The up standard and option |
|
| 7 |
Max plasma edge cutting thickness(manual holding way) |
Base on Plasma source As 20mm for powermax65 |
|
| 8 | Max.cutting speed |
Base on Plasma source (for one normal light pole electrical door, the cutting time is about 30~40 seconds) |
|
| 9 | Main motor/Brand | Stepless motor/Chinese | |

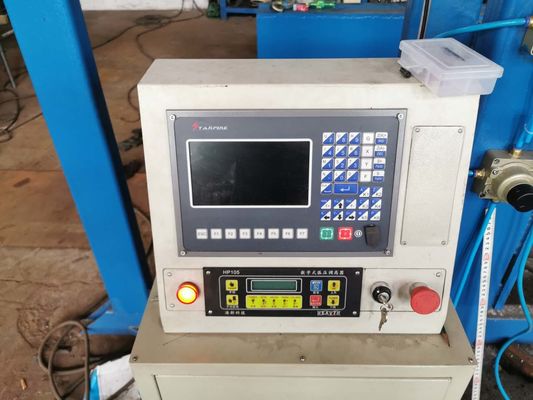

| 10 | CNC system | Si Dafeng(SF-2100S) | |
| 11 | Nesting SOFTWARE | SmartNest | |
| 12 | Control axis | 2 axis, X,A 2,X,A | |
| 13 | CNC Plasma cutting torch | 1 set | |
| 14 | Arc voltage height controller | HEAVTH HP105 | |
| 15 | height device |
Plasma Torch height moving device, 1set |
|
| 16 | Environmental temperature | 0-45℃ | |
| 17 | Humidity | <90%, no condensation | |
| 18 | Surroundings | Ventilation, no big shake | |
| 19 |
Input voltage (Can be made according to buyer’s country voltage requirement.) |
Single phase,220V, 50HZ Three phases, 380V, 50HZ |
|
