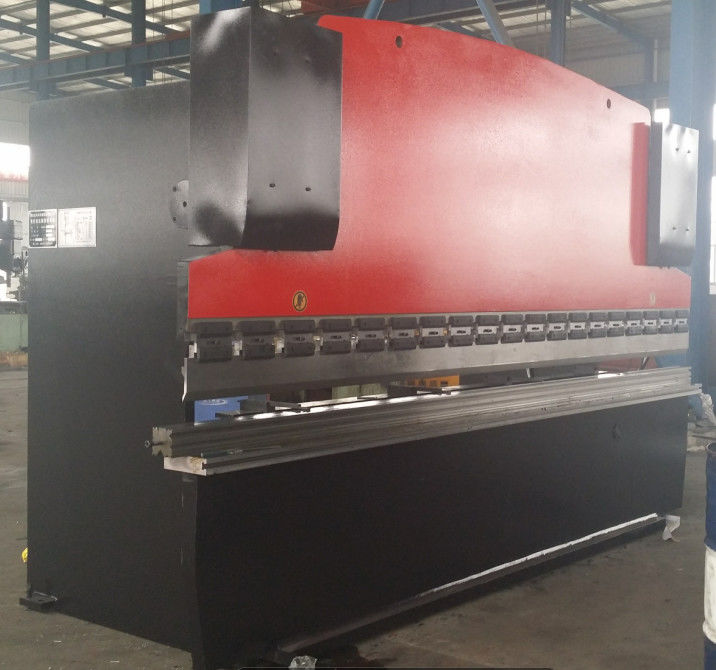

Professional 3200mm / 100 Ton Press Brake Machine with E200 system

Professional 3200mm / 100 Ton Press Brake Machine with E200 system
Professional 3200mm / 100 Ton Press Brake Machine with E200 system Professional 3200mm / 100 Ton Press Brake Machine with E200 system

Large Image :  Professional 3200mm / 100 Ton Press Brake Machine with E200 system

Product Details:
Place of Origin: Wuxi,china
Brand Name: CMC
Model Number: WC67K-100/3200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Metal pallet
Delivery Time: According requirement
Payment Terms: Down Payment 30% T/T ,70% T/T Before Shipping
Supply Ability: According requirement

Professional 3200mm / 100 Ton Press Brake Machine with E200 system

Description
Highlight:

press brake equipment

,

metal bending machine

Detailed Product Description:



CNC Control System:

Estun E200

Function: Bending Steel Plates
Product Name: Press Brake Machine Steel Sheet Thickness: 4m
Steel Sheet Width: 3200mm Use: Metal Plates





Quick Detail:



High quality bending Press Brake Machine with E200 system 100T/3200mm

1. punch force: 1000KN

2. bending max steel sheet width :3200mm

3. bending max steel sheet thickness :4m





Description:



1. The steel-welded frame could make sure high strength, high rigidity and high accuracy.

2. Using of mechanical forced synchro system, both sides of sliders move in parallel by synchro axis.

3. Deflection compensation unit is installed in the upper mold,Upper mold clamping device is an option.

4. When NC press brake, X-axis backgauge is driven by servo motor ,adoapted ball-screw and linear guide way.

5. When NC press brake, ram stroke are controled by servo moto,it could make sure higher positioning accuracy.





Applications:



Press Brake Machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.



Specifications:



Main Technical Features

NO. Name Value Unit Remark
1 Working force 1000 KN
2 Length of table 3200 mm
3 Distance of column 2650 mm
4 Throat depth 320 mm
5 Open height 365 mm
6 stroke 100 mm
7 Speed of ram slide block Approach 60 mm/s
Working 8 mm/s
Return 40 mm/s
8 Main motor 7.5 KW
9 Overall dimension Length 3430 mm
Width 1820 mm
Height 2495 mm
10 Weight 7500 Kg
11 Volume of oil tank 280 L













































































Competitive Advantage:



1) Our machine performance quality and chcheap, known in the industry.

2) One year guarantee.

3) Fast and high quality after-sales service.

4) We can design the machines according to customers’ special requirement.

5) We have professional team for service.
