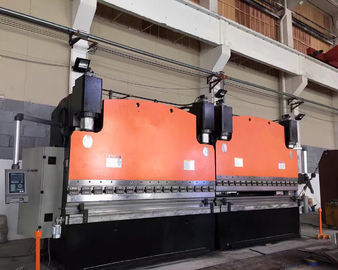

2-WE320T/3200 CNC Tandem Press Brake Machine With Electro-Hydraulic Servo System

Detail Information

Place of Origin:

Wuxi-china

Packaging Details:

Metal pallet

Supply Ability:

1 set per 60 days

Highlight:

Product Description

TECHNICAL FEATURES
1	Type		Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro
2	Working force		2X320Ton
3	Length of table		2X3200mm
4	distance between frames		2650mm
5	Throat depth		400mm
6	Open height		520mm
7	Stroke		250mm
8	Working Speed	Unload	70mm/s
		Working	7.5mm/s
		Return	75mm/s
9	Main motor		2x22kw ( Siemens)
10	CNC system		Type: DELEM DA53T Delem Co., Netherlands CNC controlled 4 AXIS (Y1,Y2,X,R)+ bottom die with crowning system
11	Tool		With 1 punching and 1 multi V block bottom die With front sheet supporting stand
12	Seal in the cylinders		SKF , OR NOK
13	Hydraulic components		BOSCH-Rexroth - , Germany
14	Hydraulic pump		SUNNY - , USA
15	Linear Raster displayer sensor		FAGUR,SPAIN
16	Main Electric Elements in cabinet		Schneider (French brand)
17	weight		2x19500 kg
18	Overall size(mm) LxWxH		2x3790x2510x3320
19	Packing:		With plastic cover
