Product Details:
Place of Origin: wuxi, china
Brand Name: CMC
Certification: ISO,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: Down payment 30% T/T, 70% T/T before shipping
Supply Ability: According requirement

White Automated Robotic Welding Machine Robotic Laser Welding

Description
High Light:

Robotic Welding Arm

,

Robotic Laser Welding

Welding - Arc Robots



With Adaptive Welding Capabilities

SKILLED AND FLEXIBLE ARC WELDING ROBOTS

Kawasaki's BA Series and R Series arc welding robots use the latest arc welding technology to rival the quality of a skilled human welder. The robots are equipped standard with arc welding specific software to enable quick and easy programming of the process path. Adaptive welding functionality is available to modify robot position, weave pattern and speed during welding to fill variable joints. Their built-in intelligence, flexibility and high accuracy make Kawasaki's arc welding robots ideal for a wide range of arc welding applications.

Typical Applications:

  • Arc Welding

Arc Welding Software:

  • Offline Programming Software - KCONG



BA006N Robot

SKILLED AND FLEXIBLE ARC WELDING ROBOTS

Kawasaki's sophisticated arc welding robots demonstrate the potential of a skilled operator from the moment they are installed.

BA006N Overview:

Payload 6 kg
Axes 6
Reach 1,445 mm
Repeatability ±0.05 mm

Applications:

  • Arc Welding



DOWNLOAD

Arc Welding robots brochure



MOTION RANGE & DIMENSIONS

Click on the drawings below to view. Dimensions shown are in (mm).

VIEW SPEC

BA006N SPECIFICATIONS





BA006N SPECIFICATIONS

Type

Articulated Robot

Degree of Freedom

6

Max. Payload (kg)

6

Max. Reach (mm)

1,445

Positional Repeatability (mm) 1

±0.05

Motion Range (°)

Arm Rotation (JT1)

±165

Arm Out-in (JT2)

+150 - −90

Arm Up-down (JT3)

+45 - −175

Wrist Swivel (JT4)

±180

Wrist Bend (JT5)

±135

Wrist Twist (JT6)

±360

Max Speed (°/s)

Arm Rotation (JT1)

240

Arm Out-in (JT2)

240

Arm Up-down (JT3)

220

Wrist Swivel (JT4)

430

Wrist Bend (JT5)

430

Wrist Twist (JT6)

650

Moment (N•m)

Wrist Swivel (JT4)

12

Wrist Bend (JT5)

12

Wrist Twist (JT6)

3.75

Moment of Inertia (kg•m2)

Wrist Swivel (JT4)

0.4

Wrist Bend (JT5)

0.4

Wrist Twist (JT6)

0.07

Mass (kg)

150

Body Color

Munsell 10GY9/1 equivalent

Installation

Floor, Ceiling

Environmental Condition

Ambient Temperature (°C)

0 - 45

Relative Humidity (%)

35 - 85 (No dew, nor frost allowed)

Power Requirements (kVA) 2

2.0

Degree of Protection

IP65

Controller

America

E01

Europe

Japan & Asia





✽1: conforms to ISO9283

✽2: depends on the payload and motion patterns

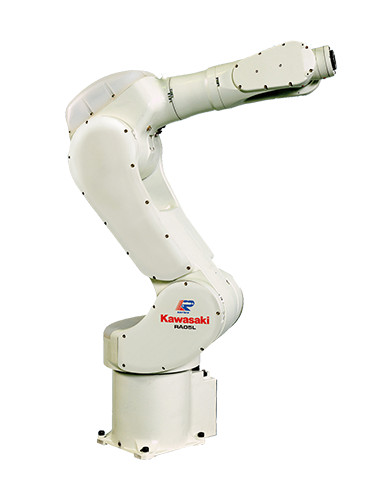

RA005L Robot

SKILLED AND FLEXIBLE ARC WELDING ROBOTS

The R Series Robots are setting the benchmark for all small to medium duty industrial robots. The compact design, along with industry leading speed, reach and work range make the R Series Robots ideal for a wide range of applications throughout a multitude of diverse industries.

RA005L Overview:

Payload 5 kg
Axes 6
Reach 903 mm
Repeatability ±0.03 mm

Applications:

  • Arc Welding

DOWNLOAD

Arc Welding robots brochure



MOTION RANGE & DIMENSIONS

Click on the drawings below to view. Dimensions shown are in (mm).

VIEW SPEC

RA005L SPECIFICATIONS





RA005L SPECIFICATIONS

Type

Articulated Robot

Degree of Freedom

6

Max. Payload (kg)

5

Max. Reach (mm)

903

Positional Repeatability (mm) 1

±0.03

Motion Range (°)

Arm Rotation (JT1)

±180

Arm Out-in (JT2)

+135 - −80

Arm Up-down (JT3)

+118 - −172

Wrist Swivel (JT4)

±360

Wrist Bend (JT5)

±145

Wrist Twist (JT6)

±360

Max Speed (°/s)

Arm Rotation (JT1)

300

Arm Out-in (JT2)

300

Arm Up-down (JT3)

300

Wrist Swivel (JT4)

460

Wrist Bend (JT5)

460

Wrist Twist (JT6)

740

Moment (N•m)

Wrist Swivel (JT4)

12.3

Wrist Bend (JT5)

12.3

Wrist Twist (JT6)

7

Moment of Inertia (kg•m2)

Wrist Swivel (JT4)

0.4

Wrist Bend (JT5)

0.4

Wrist Twist (JT6)

0.12

Mass (kg)

37

Body Color

Munsell 10GY9/1 equivalent

Installation

Floor, Ceiling

Environmental Condition

Ambient Temperature (°C)

0 - 45

Relative Humidity (%)

35 - 85 (No dew, nor frost allowed)

Power Requirements (kVA) 2

1.5

Degree of Protection

IP65

Controller

America

E77

Europe

E71

Japan & Asia

E74

✽1: conforms to ISO9283

✽2: depends on the payload and motion patterns

RA006L Robot

SKILLED AND FLEXIBLE ARC WELDING ROBOTS

The R Series Robots are setting the benchmark for all small to medium duty industrial robots. The compact design, along with industry leading speed, reach and work range make the R Series Robots ideal for a wide range of applications throughout a multitude of diverse industries.

RA006L Overview:

Payload 6 kg
Axes 6
Reach 1,650 mm
Repeatability ±0.06 mm

Applications:





DOWNLOAD

Arc Welding robots brochure



MOTION RANGE & DIMENSIONS

Click on the drawings below to view. Dimensions shown are in (mm).

VIEW SPEC







RA006L SPECIFICATIONS



RA006L SPECIFICATIONS

Type

Articulated Robot

Degree of Freedom

6

Max. Payload (kg)

6

Max. Reach (mm)

1,650

Positional Repeatability (mm) 1

±0.06

Motion Range (°)

Arm Rotation (JT1)

±180

Arm Out-in (JT2)

+145 - −105

Arm Up-down (JT3)

+150 - −163

Wrist Swivel (JT4)

±270

Wrist Bend (JT5)

±145

Wrist Twist (JT6)

±360

Max Speed (°/s)

Arm Rotation (JT1)

250

Arm Out-in (JT2)

250

Arm Up-down (JT3)

215

Wrist Swivel (JT4)

365

Wrist Bend (JT5)

380

Wrist Twist (JT6)

700

Moment (N•m)

Wrist Swivel (JT4)

13

Wrist Bend (JT5)

13

Wrist Twist (JT6)

7.5

Moment of Inertia (kg•m2)

Wrist Swivel (JT4)

0.45

Wrist Bend (JT5)

0.45

Wrist Twist (JT6)

0.14

Mass (kg)

150

Body Color

Munsell 10GY9/1 equivalent

Installation

Floor, Ceiling

Environmental Condition

Ambient Temperature (°C)

0
- 45

Relative Humidity (%)

35 - 85 (No dew, nor frost allowed)

Power Requirements (kVA) 2

2.0

Degree of Protection

IP65

Controller

America

E01

Europe

Japan & Asia

✽1: conforms to ISO9283

✽2: depends on the payload and motion patterns

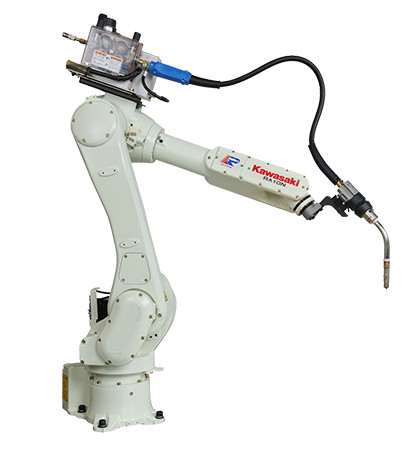

RA010N Robot

SKILLED AND FLEXIBLE ARC WELDING ROBOTS

The R Series Robots are setting the benchmark for all small to medium duty industrial robots. The compact design, along with industry leading speed, reach and work range make the R Series Robots ideal for a wide range of applications throughout a multitude of diverse industries.

RA010N Overview:

Payload 10 kg
Axes 6
Reach 1,450 mm
Repeatability ±0.06 mm





DOWNLOAD

Arc Welding robots brochure



MOTION RANGE & DIMENSIONS

Click on the drawings below to view. Dimensions shown are in (mm).
