● It is especially applicable to the cutting of small-size middle thin plate with high precision. ● It is compatible with the PC machine of gantry type digital control cutter. ● It can be used to cut any plane geometric figure. ● According to the needs of users,it can be used in flame cutting,plasma cutting,fine plasma cutting etc. ● According to the needs of users,it can be designed to be smoke evacuation type worktable or underwater cutting type worktable to ● realize"nvironment friendly”cutting ● The machine body and the material support are integrated as a whole.They may be moved integrally It is an economic,applicable,high efficient,high precision,high speed plasma cutting type.
● It is unified modularization structure and easy and quick to lnstall The main components such as body,crossbeam,column etc.were through aging treatment, SO they have good stability and high machining precision. ● The vertical and horizontal movements adopt imported precision straight-line guide with high guide precision. ● Compact entire structure,fine appearance. ● The driven system adopts full imported digital AC servo system. ● The digital control system is equipped with USA hypertherm EDGE II;or equipped according to the needs of user. ● It has many functions such as automatic ignition,automatic perforation and capacitance height-regulating If you select the plasma
● cutting,the arc voltage height-regulating deviceshall be equipped. ● For the dry and fine plasma cutting,the power supply made by some companies may be equipped such as USA Hyperthern,German Kilby etc or other famous brands.

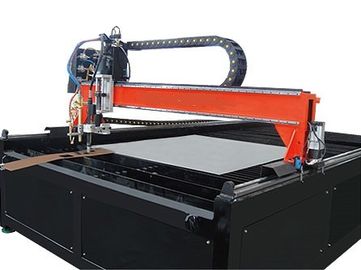

Gantry Type Cutting Machine
Specifation & Model
Effective cutting width
Effective cutting lenth
Integrated lineation precision
German D/N 231 0 standard industrial grade standard
