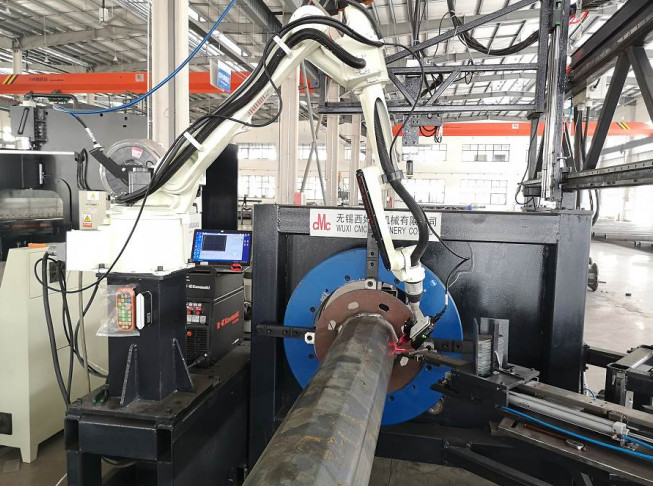

Automatic Base Plate Welding Machine for Conical Pole or Round bar

China Automatic Base Plate Welding Machine for Conical Pole or Round bar supplier
Automatic Base Plate Welding Machine for Conical Pole or Round bar supplier Automatic Base Plate Welding Machine for Conical Pole or Round bar supplier Automatic Base Plate Welding Machine for Conical Pole or Round bar supplier Automatic Base Plate Welding Machine for Conical Pole or Round bar supplier Automatic Base Plate Welding Machine for Conical Pole or Round bar supplier

Large Image :  Automatic Base Plate Welding Machine for Conical Pole or Round bar

Product Details:

Place of Origin: wuxi -china
Brand Name: cmc
Model Number: RBW-35/500

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negociate
Packaging Details: metal pallet and plastic cover
Delivery Time: 30-35 days
Payment Terms: TT,LC,FOB,CIF
Supply Ability: Negociate
Contact Now
Detailed Product Description



Quick Detail:



Name Other Names Brand Name CMC
Conical pole base plate welding machine

Pole plate welding

Pole flange welding



Feature Weld the base plate to pole automatically
Welding pole shape Round bar or pipe only Usage Industrial Street light pole industrial





Application:

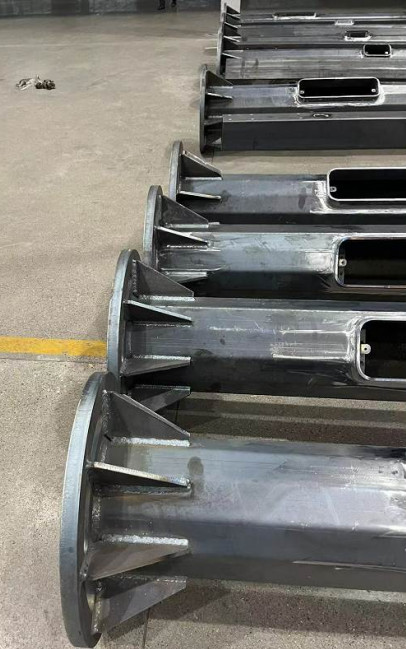

It is suitable for conical or round pole‘s base plate welding process.

Also, It is suitable for round bar, round pipe to do girth welding. According the pole or round bar’s size to set the time for one turn rotation, push the button, the round bar will start to rotate, at same time, the welding also will start. When one turn reached , the rotation and welding will stop automatically.





Specifications



No. Item Parameter
1 Pole or Round bar min diameter 35mm
2 Pole or Round bar max diameter 500mm
3 Pole or Round bar max.length 16000mm
4 Pole or Round bar min. thickness 2.5mm
5 Pole or Round bar max weight 500kg
6 Driving roller diameter 250mm
7 Driving roller width 100mm
8 Driving speed 6~48m/h, adjustable, with AC frequency control
9 Main motor AC, 0.37KW
10 Welding machine power source Model:KN350
11 Rated lnput Voltage 380V, 3P,50Hz(according customer side)
12 Rated lnput Power(KVA) 18
13 Working Current Adj.Range(A) 50-300
14 Working Voltage Adj.Range(V) 14-36
15 Rated Duty Cycle(%) 60
16 Wire Diameter(mm) 1.0,1.2
17 Cooling Mathod Gas cooling
18 Max.CO2 Gas Flow Rate 25L/min
19 Welding speed( depend on Voltage , current setting, and welding height)

adjustable

(reference speed 500mm/min)
