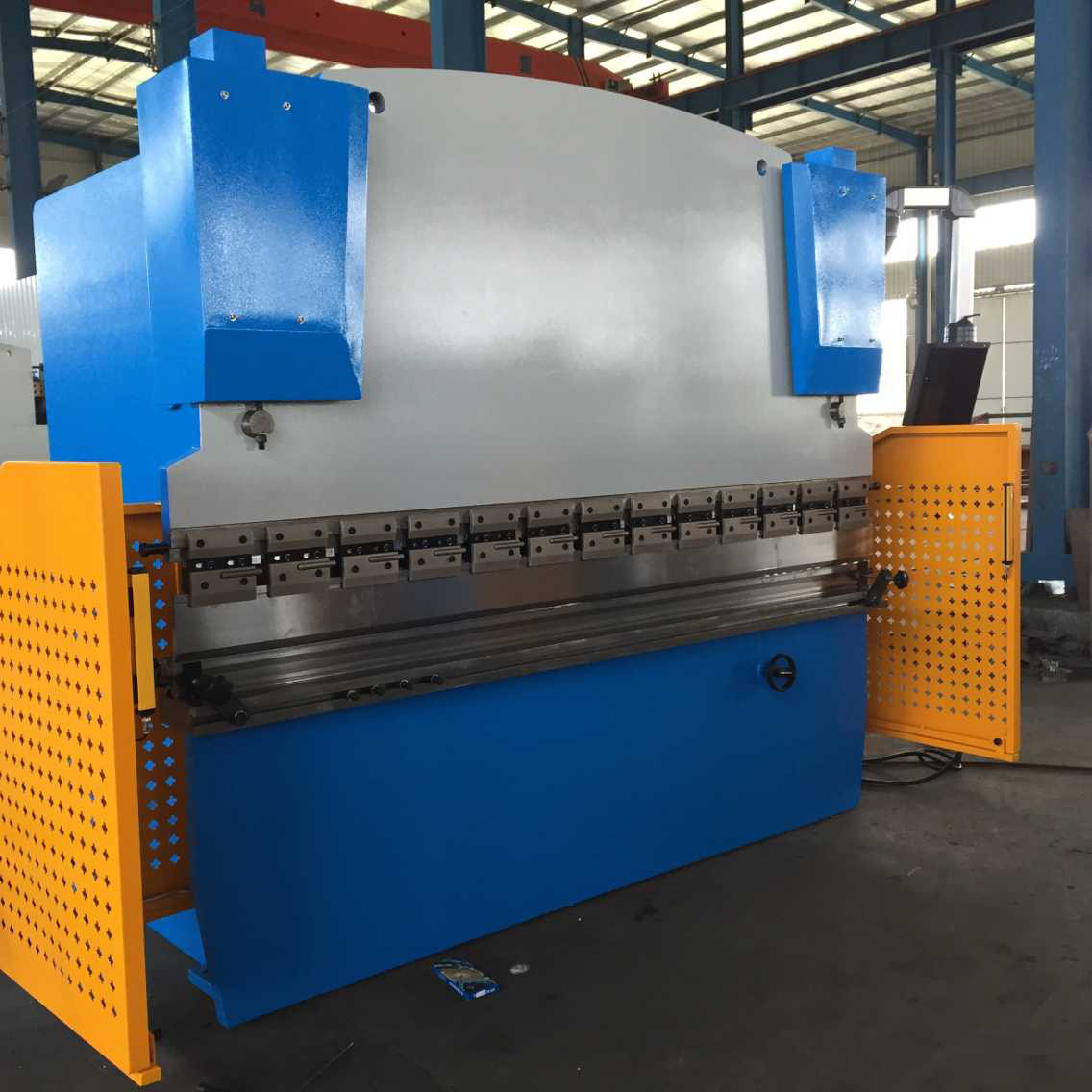

63 Ton Multi-axis CNC Hydraulic Press Brake For Metal Sheet Bending
|Name||Product other names||Brand Name||CMC|
|CNC Hydraulic Press Brake Machine||
|Feature||It can control over 3 axis, max 11 axis, multi-steps automatic running|
|Advantage||Back gauge is driven by servo motor, adopted ball-screw and linear guide way, it could make sure positioning accuracy||Controller system||
We give customer several options: Netherlands brand: Delem DA-52
CNC press brake machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial....
1) With stylish design, high rigidity, high speed
2) Electro-hydraulic servo system, closed loop control system controls accuracy

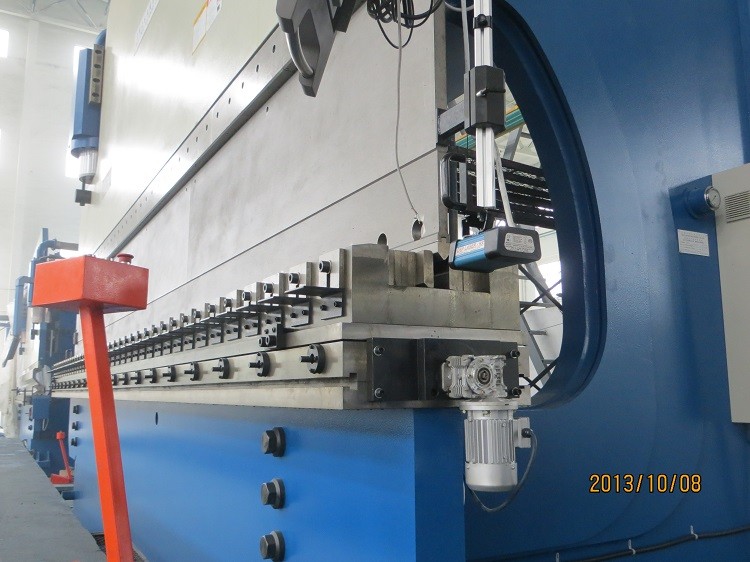

3) Worktable adopts hydraulic deflection compensation to ensure the accuracy of the workpiece

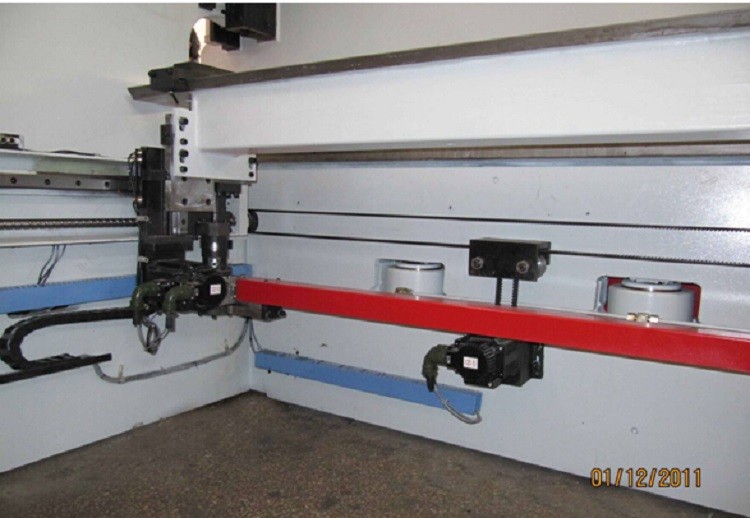

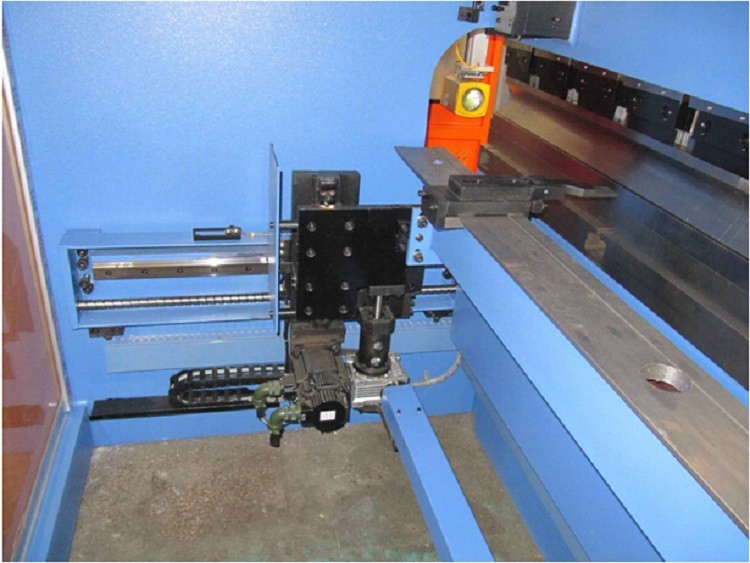

4) Back gauge is driven by servo motor, adopted ball-screw and linear guide way, it could make sure positioning accuracy
|1||Type||CNC Hydraulic press brake|
|2||Working force||63 T|
|3||Length of table||2500 mm|
|4||distance between frames||2050 mm|
|5||Throat depth||250 mm|
|6||Open height||460 mm|
Option: DA52, DA56,DA66T
Delem Co., Netherlands
Axis: 3 Axis(Y1,Y2,X)
+Automatic hydraulic compensation system
or more axis
|11||Tool||With 1 punching and 1 bottom die|
|12||Main Electric Elements in cabinet||Schneider|
|13||Seal in the cylinders||NOK, made in Japan|
|14||Hydraulic components||BOSCH-Rexroth , Germany|
|15||Hydraulic pump||BOSCH , Germany, or Nitch, Japan|

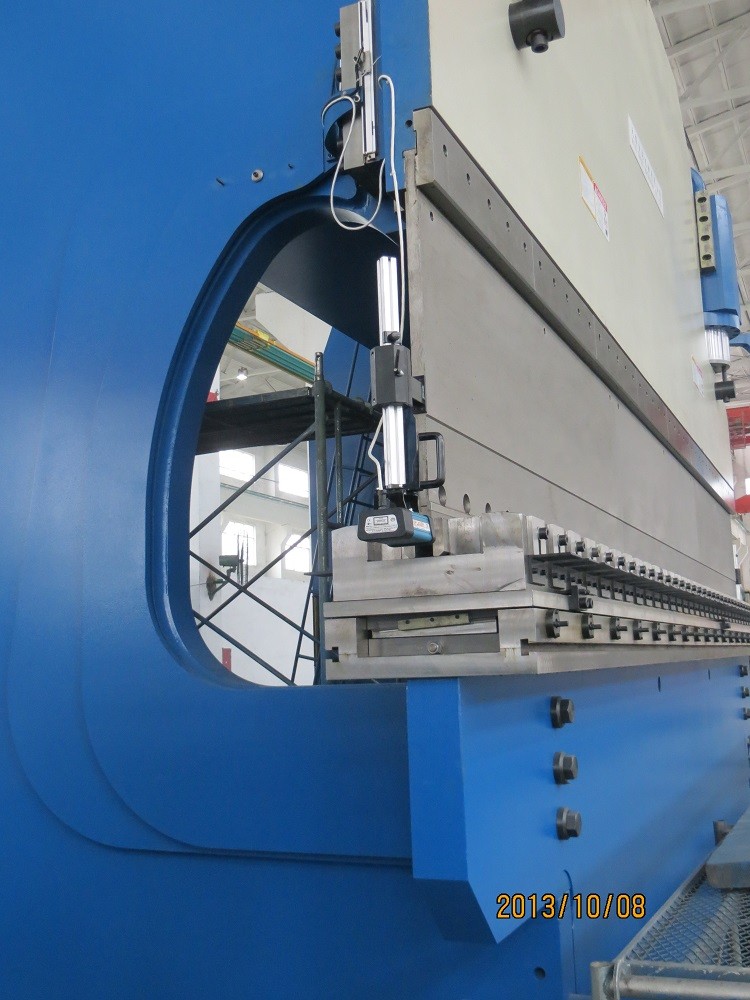

|16||Linear Raster displayer sensor||
HEIDENHAIN , GERMANY
|17||Gross weight||6000 kg|
|18||Overall sizes(mm) LxWxH||2770x1895x2480|
|19||Packing:||With plastic cover|
|Option 1||DELEM DA56 CNC SYSTEM|
|Option 2||DELEM DA52 CNC SYSTEM|
|Option 3||Additional axis: R (back gauge up and down)|
Communication with customers
A: what is difference during DA-52, DA-56, DA-65W and DA66T?
About CNC press brake machines, usually, we suggest four kinds of controller system more often: Delem DA-52, DA-56, DA-65W, DA66T Following is their characters:
DA-52 control system:
DA-56 control system:
DA65W controller system:
DA66T controller system:
A: If it is difficult to operate controller system?
B: First, these systems are not difficult, easy in fact. If the workers in the factory have experience of operation NC machines, then our system is easy for them to study, when we send machines, we will give controller system manual. If the factory feels it is hard, then they can send one engineer to our side, we will give him some training in our factory.
A: Please indicate press brake warranty terms
Warranty time : one year from finishing commissioning date.
Deatail Warranty :
1. Long distance Technical supporting, free forever.
Any questions, problem on machine, on process help. We can give solution and information to customer by email, skype, video , phone .
2. In the warranty time, If due to machine quality reason , some parts broken , we will supply the parts , parts is free for customer , shipping cost is free for customer.
3. After the warranty time, If needs some machine parts, we also supply the parts with basic cost only.
4. If need our engineer to come, we will arrange, but customer will pay for Visa, air ticket, hotel, food cost, and salary.
