ISO9001 350H Beam Highway Barrier Roll Forming Machine

Certification
China Wuxi CMC Machinery Co.,Ltd certification
China Wuxi CMC Machinery Co.,Ltd certification
I'm Online Chat Now

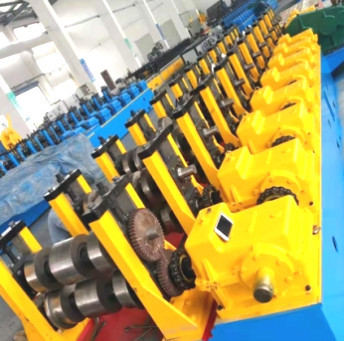

ISO9001 350H Beam Highway Barrier Roll Forming Machine

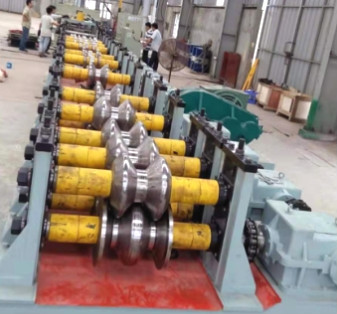

ISO9001 350H Beam Highway Barrier Roll Forming Machine

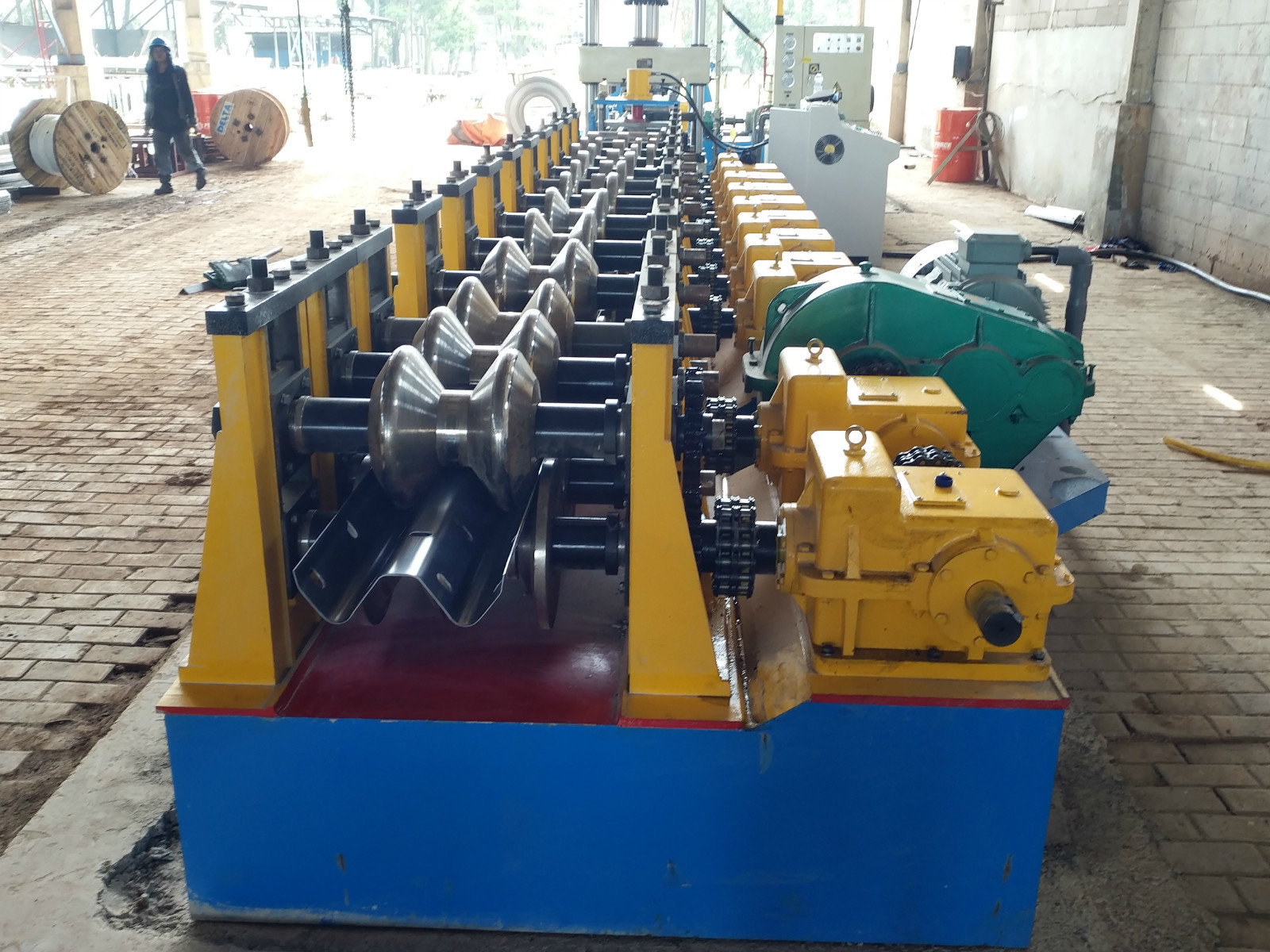

ISO9001 350H Beam Highway Barrier Roll Forming Machine

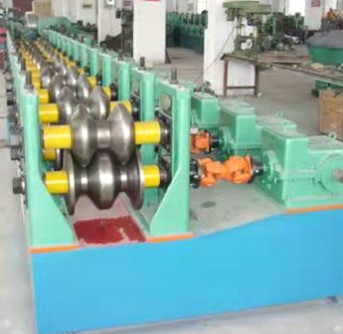

ISO9001 350H Beam Highway Barrier Roll Forming Machine ISO9001 350H Beam Highway Barrier Roll Forming Machine ISO9001 350H Beam Highway Barrier Roll Forming Machine ISO9001 350H Beam Highway Barrier Roll Forming Machine ISO9001 350H Beam Highway Barrier Roll Forming Machine

Large Image :  ISO9001 350H Beam Highway Barrier Roll Forming Machine

Product Details:
Place of Origin: WUXI,CHINA
Brand Name: CMC
Certification: CE, ISO
Payment & Shipping Terms:
Price: Negotiate
Packaging Details: The whole body covered with plastic bag. or according to the customers requirements.
Delivery Time: According to the stocks
Payment Terms: T/T,L/C
Supply Ability: 36 Sets per month.

ISO9001 350H Beam Highway Barrier Roll Forming Machine

Description
Certification: CE/ISO9001 Voltage: 380V, 50Hz
Raw Material: PPGI Warranty: 1 Year,12 Months
Color: Customized Roller Material: 45#steel Chrome Plated
High Light:

PPGI Barrier Roll Forming Machine

,

350H Highway Barrier Roll Machine





ISO9001 350H beam Highway Barrier Roll Forming Machine



I.Product description





1 Model No. High Speed Floor Deck Steel Roll Form Machine
2 Thickness 0.3-0.8mm
3 Coli material GI
4 The bearing capacity of manual decoiler 6.5 tons
5 shaft material 45#steel
6 Out diameter Customized
7 numbers of forming steps Customized
8 transmission chain transmission
9 Forming speed 8-12m/min
10 main motor power 3kw
11 voltage 380V50HZ Three-phase or as required
12 dimension 7*1.3*1.3
13 cutting hydraulic cutting
14 blade material Cr12 steel with quenched treated 60-62°c
15 control system PLC(Delta)
16 length tolerance ±1mm
17 spare parts

1 easy demaged parts:conk 2pcs, fuse-link 4pcs

2 rubber mat: 1 pcs

3 bolt spanner: 1 pcs

18

The whole line including: Manual decoiler, roll forming machine, hydraulic station,

hydraulic cutter, PLC control system, run-out table.







II.Basic machine parameters

  1. Mechanical properties and specifications of raw materials

Material: Q345B galvanized sheet

Thickness: 2.53.0mm

Width: 450-476mm

Weight: 65KG

Specifications of products

Product: by product drawing

Product width: 310mm ± 5mm

Product height: 81mm ± 5mm

Product specifications

Forming method: Cold roll forming

Production speed: ≤10m / min

Feeding direction: left feed

Main voltage: 380V, 50Hz

Unit total power: about 20.7KW

Drive shaft bearing: 6026

Turbo lift: SWL10-3 / 23-FU3

Main drive motor: YVP180M-4-15

Reducer: ZQ500-48.57

Wallboard material: A3

Shaft material: 40

Mold material: Gcr15







III,Overview of equipment structure





The equipment frame is processed by A3 steel plate, after aging treatment, 3-roller structure, 1 upper and 2 lower, the lower roller adopts a fixed structure, the upper roller adopts slider movement adjustment, and 3 sets of turbine box drive are driven by the motor to adjust the upper and lower The turbine box is connected by a connecting rod to ensure the synchronization of 3 sets of boxes, and the 3 independent wall plates are connected by a shaft to ensure the parallelism of the whole machine. The diameter of the roller shaft is 110mm. There are two sets of molds on the left and right, one for the inner arc and one for the outer arc, and a set of 15KW main motor. It is driven by a ZQ500 reducer, which drives the left and right lower shafts through gears.The gear module is 10m, one for each left and right.The product is processed through the operation console.



IV,Equipment configuration checklist



No



Part Name



Quantity

1



Forming mould



One set of molds on each side

2



15KW drive motor



1Set

3



Forming mold shaft



3Sets

4



Turbo lift



3Sets

5



Lifting drive motor



1Set

6



ZQ500 reducer



1Set

7



Electrical console



1Set

8



Equipment anchor bolt



1Set







V.Equipment structure diagram:


ISO9001 350H Beam Highway Barrier Roll Forming Machine 1
