Steel Two Waves 3.0mm Guardrail Roll Forming Machine

Certification
China Wuxi CMC Machinery Co.,Ltd certification
China Wuxi CMC Machinery Co.,Ltd certification
I'm Online Chat Now

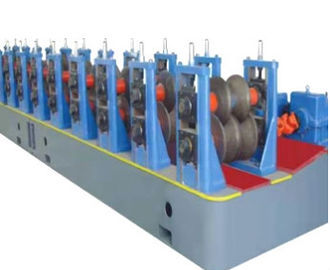

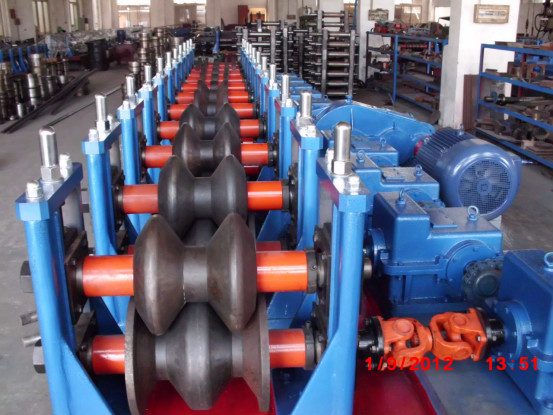

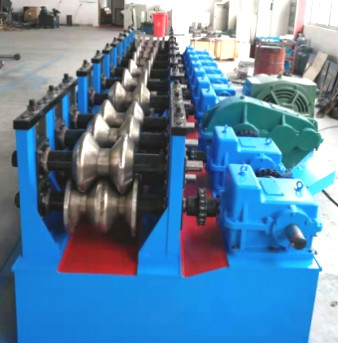

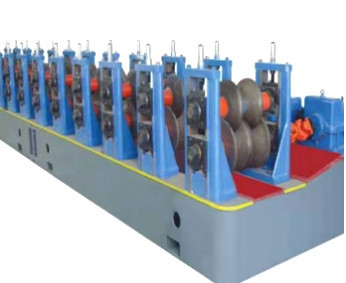

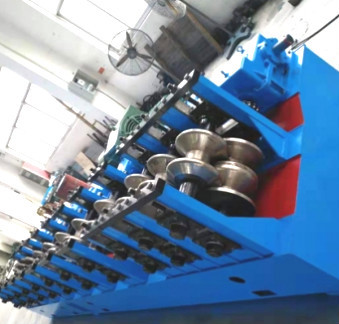

Steel Two Waves 3.0mm Guardrail Roll Forming Machine

Steel Two Waves 3.0mm Guardrail Roll Forming Machine
Steel Two Waves 3.0mm Guardrail Roll Forming Machine
Steel Two Waves 3.0mm Guardrail Roll Forming Machine Steel Two Waves 3.0mm Guardrail Roll Forming Machine Steel Two Waves 3.0mm Guardrail Roll Forming Machine Steel Two Waves 3.0mm Guardrail Roll Forming Machine Steel Two Waves 3.0mm Guardrail Roll Forming Machine

Large Image :  Steel Two Waves 3.0mm Guardrail Roll Forming Machine

Product Details:
Place of Origin: WUXI,CHINA
Brand Name: CMC
Model Number: 31085
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: According to the machine requirements
Packaging Details: Nude
Delivery Time: According to the requirements
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: According to the actual situation

Steel Two Waves 3.0mm Guardrail Roll Forming Machine

Description
Place Of Origin:: WUXI,CHINA Voltage: 380V 50Hz 3phases
Brand Name:: CMC Product Name:: Two Waves Guardrail Roller Forming Machine
Tile Type:: Steel Video Outgoing-inspection:: Provided
High Light:

476mm Guardrail Roll Forming Machine

,

20.7KW Guardrail Roll Forming Machine





I.Basic machine parameters

  1. Mechanical properties and specifications of raw materials

           Material: Q345B galvanized sheet

           Thickness: 2.5~3.0mm

           Width: 450-476mm

           Weight: 65KG

           Specifications of products

           Product: by product drawing

           Product width: 310mm ± 5mm

           Product height: 81mm ± 5mm

           Product specifications

           Forming method: Cold roll forming

           Production speed: ≤10m / min

           Feeding direction: left feed

           Main voltage: 380V, 50Hz

           Unit total power: about 20.7KW

           Drive shaft bearing: 6026

           Turbo lift: SWL10-3 / 23-FU3

           Main drive motor: YVP180M-4-15

           Reducer: ZQ500-48.57

           Wallboard material: A3

           Shaft material: 40

           Mold material: Gcr15



II.Overview of equipment structure

The equipment frame is processed by A3 steel plate, after aging treatment, 3-roller structure, 1 upper and 2 lower, the lower roller adopts a fixed structure, the upper roller adopts slider movement adjustment, and 3 sets of turbine box drive are driven by the motor to adjust the upper and lower The turbine box is connected by a connecting rod to ensure the synchronization of 3 sets of boxes, and the 3 independent wall plates are connected by a shaft to ensure the parallelism of the whole machine. The diameter of the roller shaft is 110mm. There are two sets of molds on the left and right, one for the inner arc and one for the outer arc, and a set of 15KW main motor. It is driven by a ZQ500 reducer, which drives the left and right lower shafts through gears.The gear module is 10m, one for each left and right.The product is processed through the operation console.



III.Equipment configuration checklist



No



Part Name



Quantity

1



Forming mould



One set of molds on each side

2



15KW drive motor



1Set

3



Forming mold shaft



3Sets

4



Turbo lift



3Sets

5



Lifting drive motor



1Set

6



ZQ500 reducer



1Set

7



Electrical console



1Set

8



Equipment anchor bolt



1Set







IV.Our service

· Sample are available and free.

·

· We will make delivery of the goods 15-30 days after get deposit.

·

· All our goods are with best price and reasonable price.

·

· We can make delivery by sea ,by air or express.







V.Bending machine equipment structure diagram:
