Product Details:
Place of Origin: wuxi -china
Brand Name: CMC
Model Number: QC11K-13x8000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: FOB/CIF
Supply Ability: According requirement

NC E200 control Hydraulic Shearing Machine , guillotine shear

Description
High Light:

hydraulic guillotine shearing machine

,

sheet metal shearing machine

Specifications

1). This machine belongs to second generation of hydraulic shear, with advanced integrated hydraulic system with an excellent reliability and easy for maintenance.
2). Welded steel plate construction, hydraulic drive and welded blades frame, with high strength and good rigidity.
3). Adopts three-point roller guides. Through the force to the front roller by the special spring, the cutting beam keeps in touch tightly with the two back rollers.
4). The shearing angle can be changed so the performance would be good to cut either thick or thin plate.
5). As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
6). The power storage device returns steadily and quickly.
7). The special worktable structure, designed from optimization technology makes the deformation(Sx), which is formed during shearing, to be able to compensate the curving of the upper beam under the shearing force. This assures the blade gap to remain constant laong the full length of the worktable thus enhancing the shearing precision and quality.



Technical Parameters:

NC E200 control Hydraulic Shearing Machine , guillotine shear 0
TECHNICAL FEATURES
1 Type NC Hydraulic Guillotines type
2 Cutting length 8000 mm
3 Cutting thickness 13 mm (mild steel at 450 Mpa)
4 Shear angle 0.5~2°adjustable
5 Number of stroke per minute 6
6 Stroke back gauge 20-1000mm
7 Main motor 75kw
8 NC control system

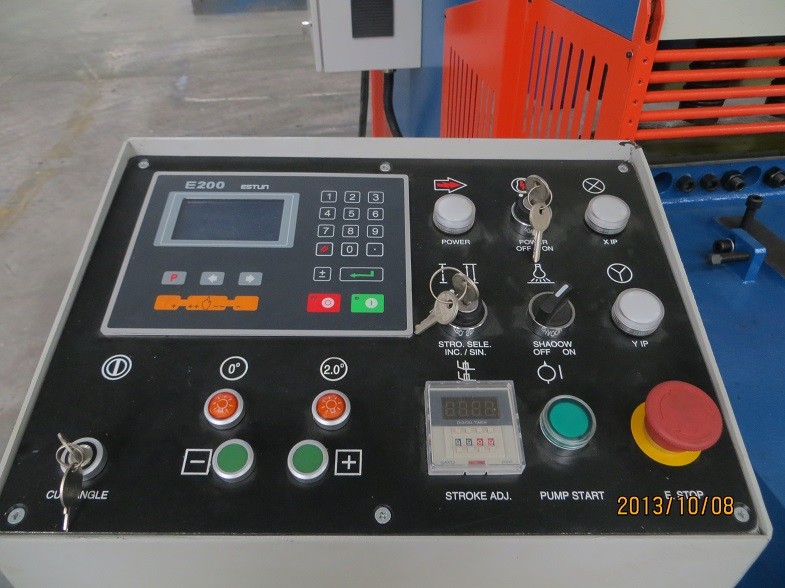

Type: E200, control 1 Axis back gauge system, as the attached photo.

The back gauge is with ball screw.

9 Main Electric Elements in cabinet Schneider
10 Seal in the cylinders NOK, made in Japan
11 Hydraulic VALVE HOERBIGER ,Germany
12 Hydraulic Pump NACHI, Japan
13 Gross weight 62,800 kg
14 Before packing size (mm) 9255x3050x3545
15 Packing: The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it.
