6×2500 Hydraulic Swing Beam Shearing machine metal sheet cutter

Certification
China Wuxi CMC Machinery Co.,Ltd certification
China Wuxi CMC Machinery Co.,Ltd certification
I'm Online Chat Now

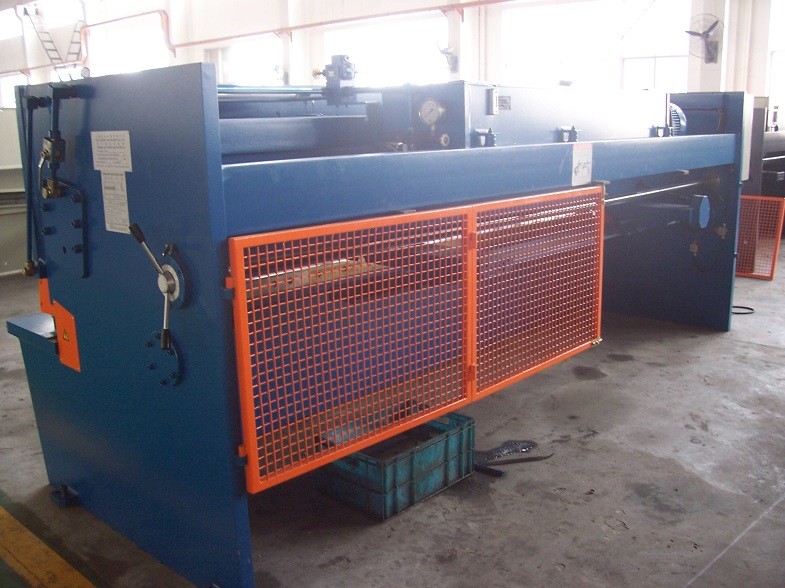

6×2500 Hydraulic Swing Beam Shearing machine metal sheet cutter

6×2500 Hydraulic Swing Beam Shearing machine metal sheet cutter
6×2500 Hydraulic Swing Beam Shearing machine metal sheet cutter

Large Image :  6×2500 Hydraulic Swing Beam Shearing machine metal sheet cutter

Product Details:
Place of Origin: wuxi -china
Brand Name: CMC
Model Number: QC12Y series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: FOB/CIF
Supply Ability: According requirement

6×2500 Hydraulic Swing Beam Shearing machine metal sheet cutter

Description
High Light:

sheet metal cutting machine

,

sheet metal shearing machine

Specifications

Hydraulic Swing Beam Shearing machine,Steel-welded construction, vibration to eliminate stress
QC12Y series hydraulic swing beam shearing machine main functions:

(1) Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity (2) Hydraulic top-drive, steadiness and reliability (3) With adopts quick manual adjust device, cutting stroke can adjust to be suitable shearing short sheet (4) With motor-driven back gauge and counter device (5) With standard front support sheet frame (6) Main electric components are from Siemens brand (7) CE standard back-safety curtain is available at extra cost (8) Foot pedal to realize emergency stop



Technical Parameters:



Model Number of stroke Bake gauge Range Cutting Angle Main Motor Dimension
QC12Y-4×2000 20 20-600 1°30’ 7.5 2590*1610*1715
QC12Y-4×2500 20 20-600 1°30’ 7.5 3140*1610*1630
QC12Y-4×4000 8 20-600 1°30’ 7.5 4640*1610*1830
QC12Y-6×2000 20 20-600 1°30’ 7.5 2590*1610*1720
QC12Y-6×2500 18 20-600 1°30’ 7.5 3140*1610*1630
QC12Y-6×3200 14 20-600 1°30' 7.5 3840*1610*1630
QC12Y-6×4000 12 20-600 1°30’ 11 4660*1670*1830
QC12Y-6×5000 7 20-800 1°30’ 11 5770*2150*2065
QC12Y-6×6000 7 20-800 1°30' 15 6800*2300*2360






Hydraulic System:



- Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.

- Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.

- All seals in cylinder is imported,the most famous brand,good quality and high performance

-Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly



Cutting Control System:



- The cutting times of this machining tool is displayed on a Estun E10 NC and accurately show the cut after the block size and number display.

- The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.

- Light alignment device eases drawing line for cutting, Standard front support sheet frame, A set of standard blades

- System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.



Blade Adjustable and cutting Precision:



- Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.

- The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.

- Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.

- System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.





Advance Technology and Procedures:



- Optional:Holland Delem DAC350, DAC360, DAC310 or Estun E200 cnc controller automatically controls the backgauge, cutting stroke, cutting angle and the blades gap together the numbers of workpieces accurately.

- European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany.

-X axis back gauge clearance are controlled by E10s which ensures a higher cutting accuracy, Backgauge with Optional ball screw and line guide rail,, maximum stroke of backgauge can realize 1000mm.
