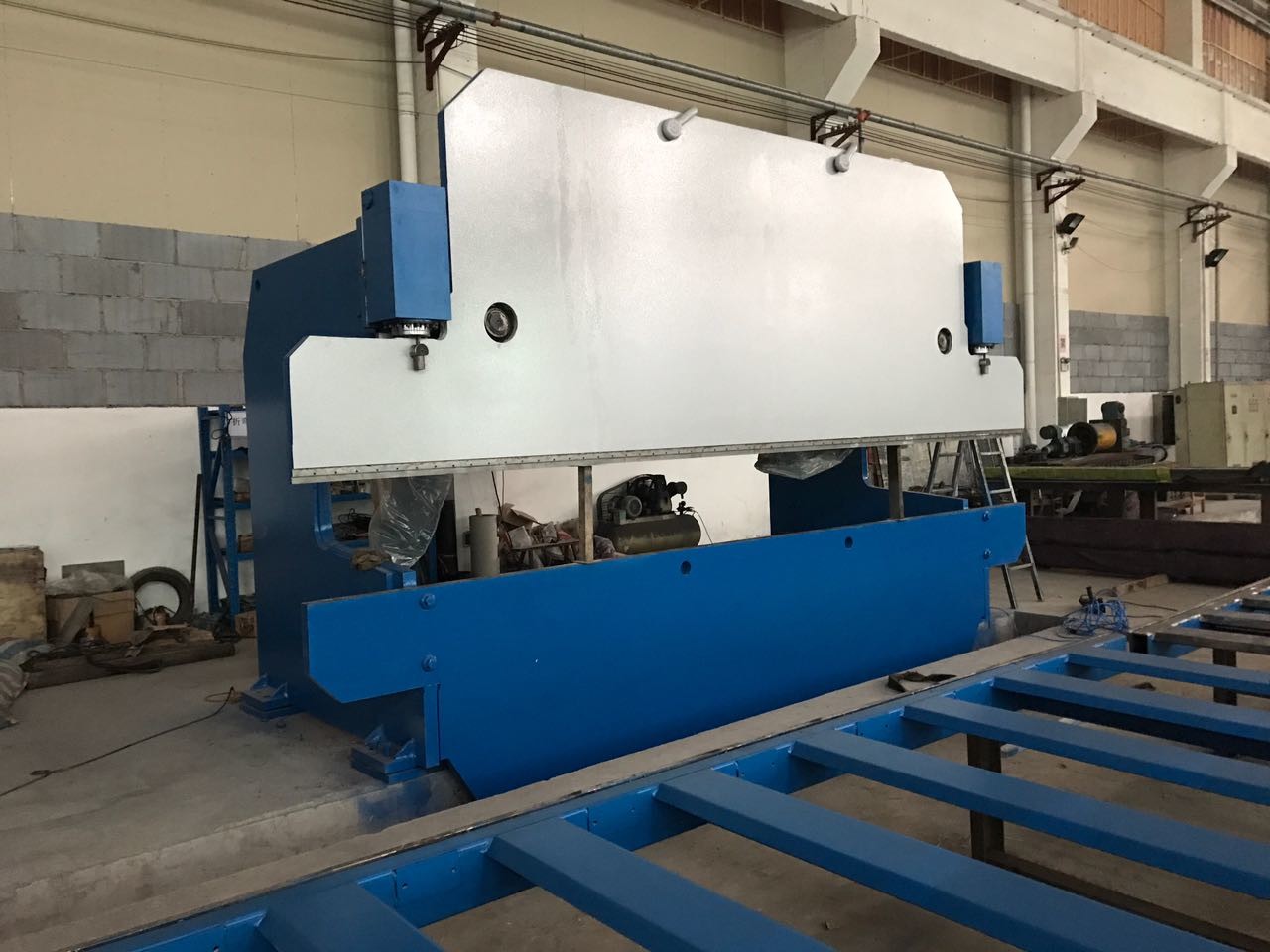

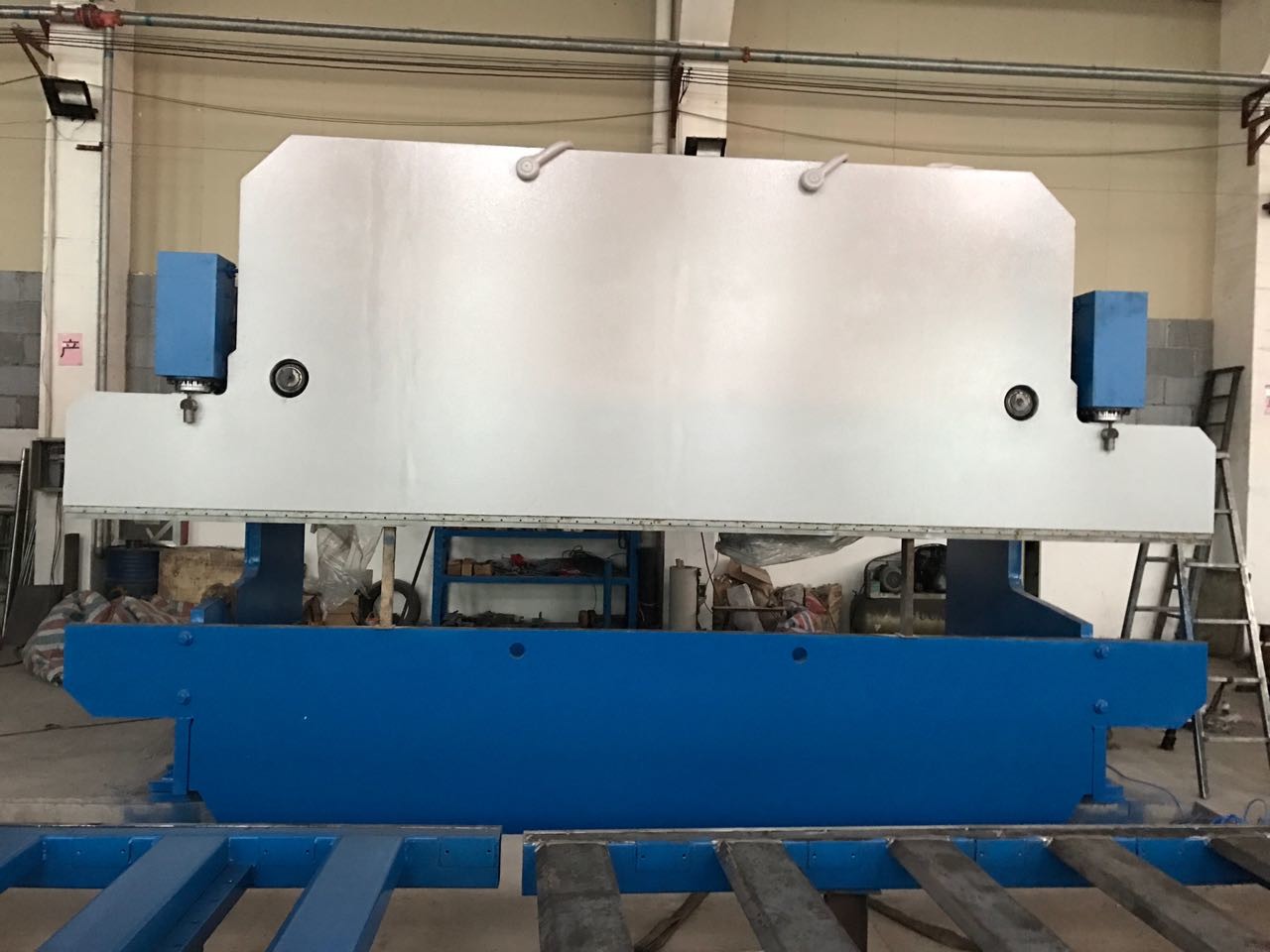

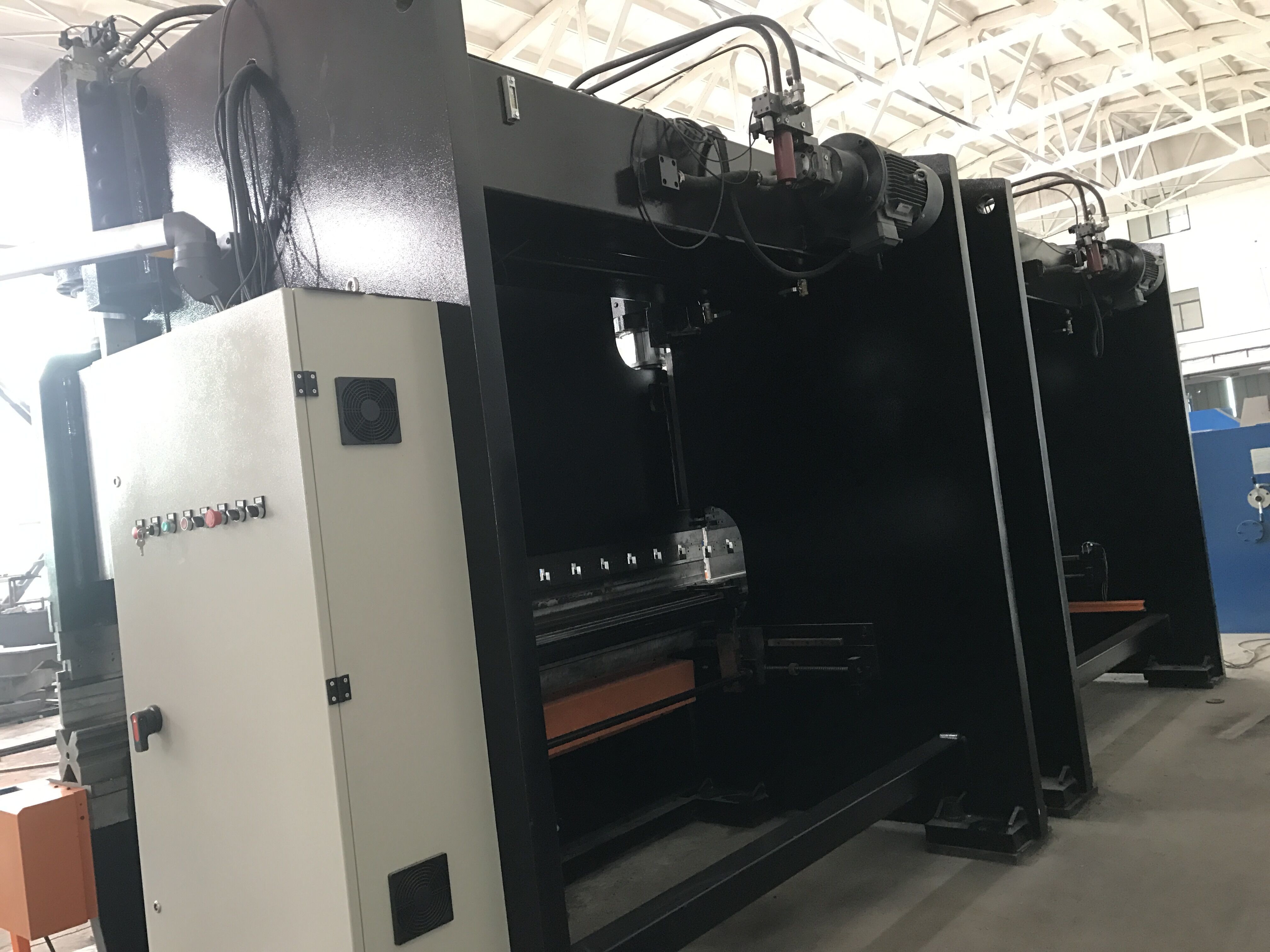

125T / 4000mm CNC Hydraulic Press Brake Bending Machine for Steel Plate

China 125T / 4000mm CNC Hydraulic Press Brake Bending Machine for Steel Plate supplier
125T / 4000mm CNC Hydraulic Press Brake Bending Machine for Steel Plate supplier 125T / 4000mm CNC Hydraulic Press Brake Bending Machine for Steel Plate supplier 125T / 4000mm CNC Hydraulic Press Brake Bending Machine for Steel Plate supplier 125T / 4000mm CNC Hydraulic Press Brake Bending Machine for Steel Plate supplier

Large Image :  125T / 4000mm CNC Hydraulic Press Brake Bending Machine for Steel Plate

Product Details:

Place of Origin: Wuxi-china
Brand Name: CMC
Model Number: WE67K-125/4000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Metal pallet
Delivery Time: According requirement
Payment Terms: Down Payment 30% T/T ,70% T/T Before Shipping
Supply Ability: According requirement
Contact Now
Detailed Product Description

Detailed Product Description:


CNC Control System:

Delem DA-52
DA-56
DA-66T


Function:Bending Steel Plates
Product Name:CNC Hydraulic Press BrakeSteel Sheet Thickness:4mm
Steel Sheet Width:4000mmUse:Metal Plates



Quick Detail:

High Efficiency CNC Hydraulic Press Brake for Bending Steel Plates 4000mm Width 125T/4000mm
Select And Use DELEM DA52 CNC Control System
1. punch force: 1250KN
2. bending max steel sheet width :4000mm
3. bending max steel sheet thickness :4mm


Description:

1. With stylish design, high rigidity, high speed.
2. Electro-hydraulic servo system,closed loop control system controls accuracy.
3. Worktable adopts hydraulic deflection compensation to ensure the accuracy of the workpiece.

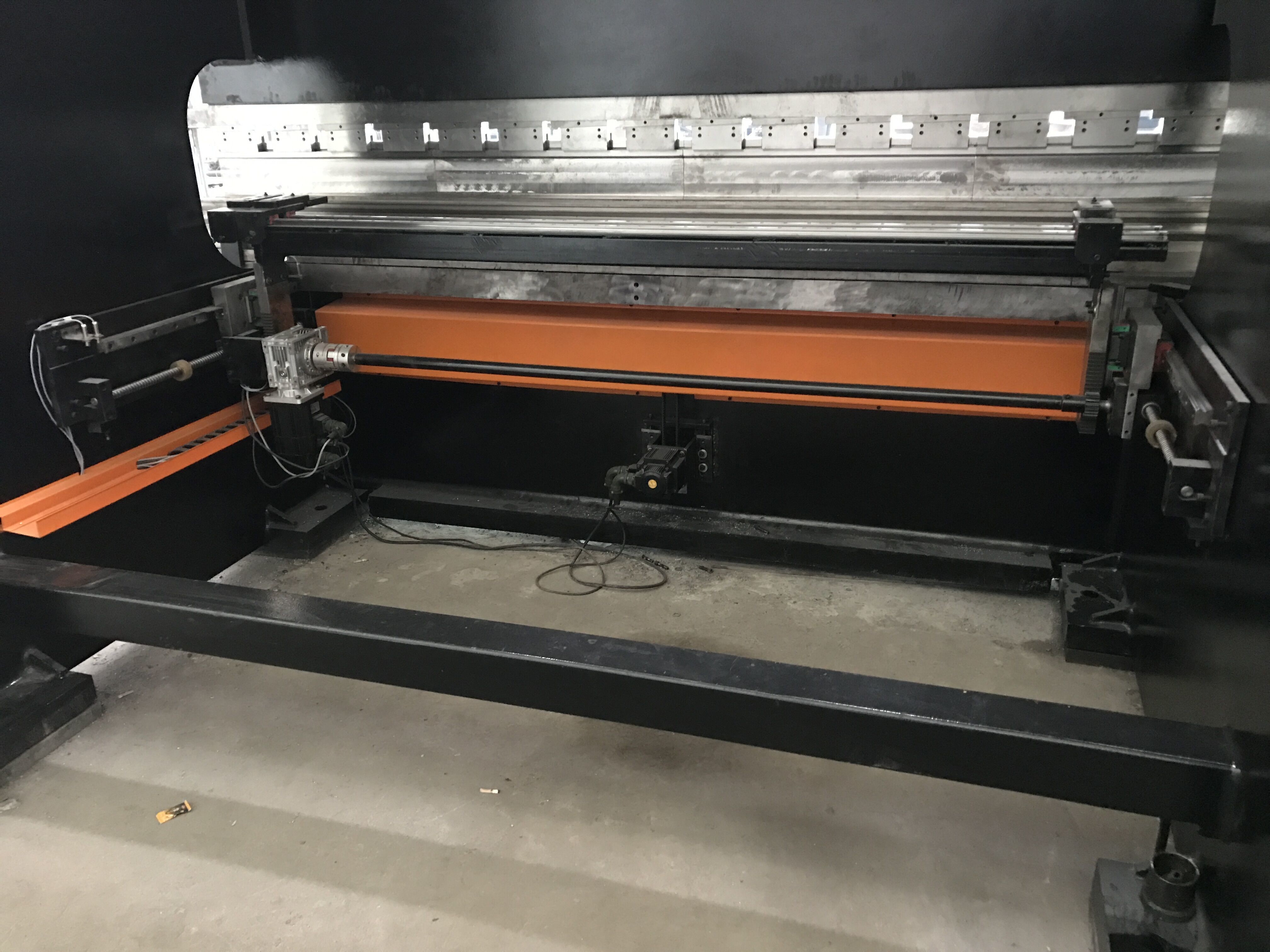

4. Back gauge is driven by servo motor ,adoapted ball-screw ,and linear guide way,it could make sure    positioning accuracy.


Applications:

CNC Hydraulic Press Brake is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.

Specifications:

Main Technical Features

NO.NameValueUnitRemark
1Working force1250KN
2Length of table4000mm
3Distance of column3100mm
4Throat depth430mm
5Open height490mm
6stroke200mm
7Speed of ram slide blockApproach100mm/s
Working8.5mm/s
Return75mm/s
8Main motor7.5KW
9Overall dimensionLength4250mm
Width2140mm
Height2870mm
10Weight11300Kg
11Volume of oil tank380L







































Competitive Advantage:

1) Our machine performance quality and chcheap, known in the industry.
2) One year guarantee.
3) Fast and high quality after-sales service.
4) We can design the machines according to customers’ special requirement.
5) We have professional team for service.


Communication with customers

A: what is difference during DA-52, DA-56, DA-65W and DA66T?

About CNC press brake machines, usually, we suggest four kinds of controller system more often: Delem DA-52, DA-56, DA-65W, DA66T Following is their characters:

DA-52 control system:

  1. With LCD true-color display
  2. Max control 4 axis(Y1,Y2 and two auxiliary axis)
  3. worktable crowning compensation control
  4. tooling, material and product library
  5. USB interface
  6. Advanced Y axle control algorithm, it can control closed loop, also open loop

DA-56 control system:

  1. With LCD true-color display
  2. 2D programming
  3. Bending process
  4. Developed length calculation
  5. worktable deflection compensation control
  6. tooling, material and product library
  7. USB interface
  8. Servo control, frequency control and AC motor control

DA65W controller system:

  1. Modular structure, max 20 axis
  2. Built-in PLC reduces machine circuit design, let the machine more stable
  3. Processing automatic calculation and optimization
  4. self diagnosis function supply diagnosis for the whole system and components function
  5. multi-language selection
  6. 3.5" floppy drive and RS232 interface, program and parameter can realize external storage, online and offline programming.
  7. 2 D graphics mode programming, adopts different gray scale to display processing workpiece, tooling.
  8. It can works 2500 program, 90 tooling.
  9. Calculate clamping point, tool safe area, bending force, unloading distance and worktable compensation.

DA66T controller system:

  1. Error message prompting system and help text. It can supply timely warning for your error programming and wrong operation, which save much time that looking for error.
  2. Standard Ethernet interface, connect windows
  3. real-time windows system, multi-task treatment and file management
  4. USB interface, connect external device: mouse and fingerboard
  5. Colorful display: 12 inch
  6. TFT 2D graphics mode programming
  7. Automatic bending processing
  8. PLC function
  9. operation warning system

MANUFACTURER: WUXI JINQIU MACHINERY CO.,LTD
